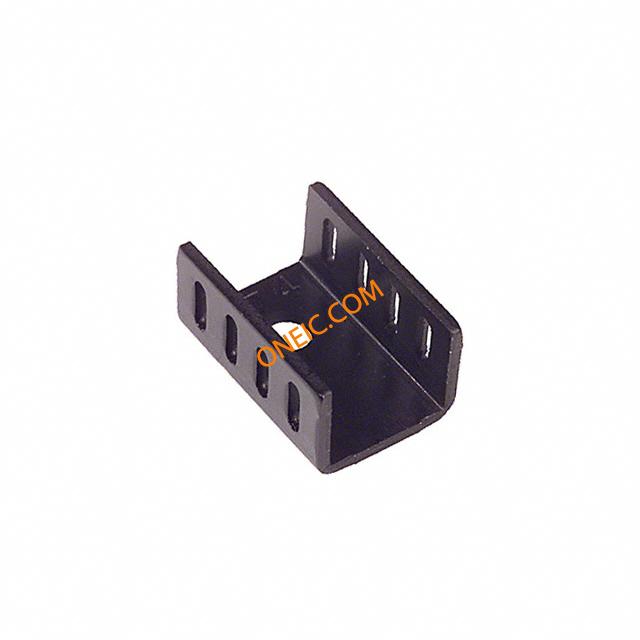

274-2AB
| Manufacturer | |
| Description | Heat Sinks TO-220 LOW PROFILE HEATSINK LOW HEIGHT BLK TO-220 Heat Sink Passive TO-220 Vertical/Horizontal Thru-Hole Aluminum 7°C/W Black Anodized HEAT SINK TO-220 Heatsink;TO-220;BoltOn;LowProfile;7C/W |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Heat Sinks | Lead Time | 56 Days |
| Subcategory | Heat Sink | Product Category | Heat Sinks |
| Standard Package | 100 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 84879090 |
Mechanical
| Color | Black | Shape | Rectangular |
| Width | 12.7 mm | Finish | BlackAnodized |
| Height | 13.46 mm | Length | 19.05 mm |
| Weight | 0.00159 | Material | Aluminum |
| Fin Height | Folded | Mounting Type | :Screw |
| Mounting Style | SMD/SMT | Package / Case | TO-220 |
| Package Cooled | TO-220 | Width (Inches) | :1.81" |
| Height (Inches) | :0.5" | Material Finish | Black Anodized |
| Width - Overall | :46mm | Front Connection | 7°C/W@400LFM |
| Length - Overall | :0.52" | Primary Material | TO-220 |

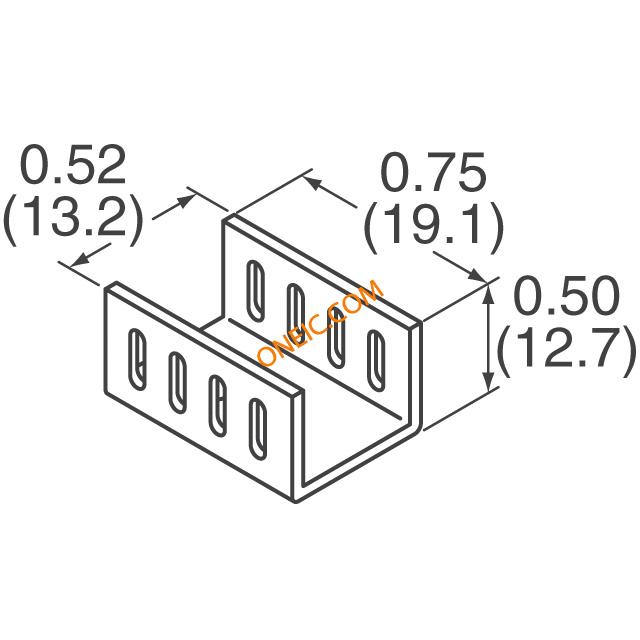

| Size / Dimension | 0.52×0.75in. | Attachment Method | Bolt On |
| Heat Sink Material | Aluminum | Height Above Board | 0.5in. |
| Height - Seated (Max) | 0.500" (12.70mm) | Shell Size - Insert (Convert From) | :12.7mm |
Product Info
| Type | Board Level | Features | Low-HeightWaveSolderableHeatSink |
| Application | TO-220 | Configuration | Vetical/Horizontal |
| Bus Connection | 52°C@2W | Application Specifics | BoardLevelPowerSemiconductors |
Environmental
| Heat Protection | :Aluminium | Thermal Resistance | 7 C/W |
| Thermal Resistance @ Natural | 25°C/W | Power Dissipation @ Temperature Rise | 2W @ 50°C |
| Thermal Resistance @ Forced Air Flow | 7.0°C/W @ 400 LFM | ||
