175-6-220P
| Manufacturer | |

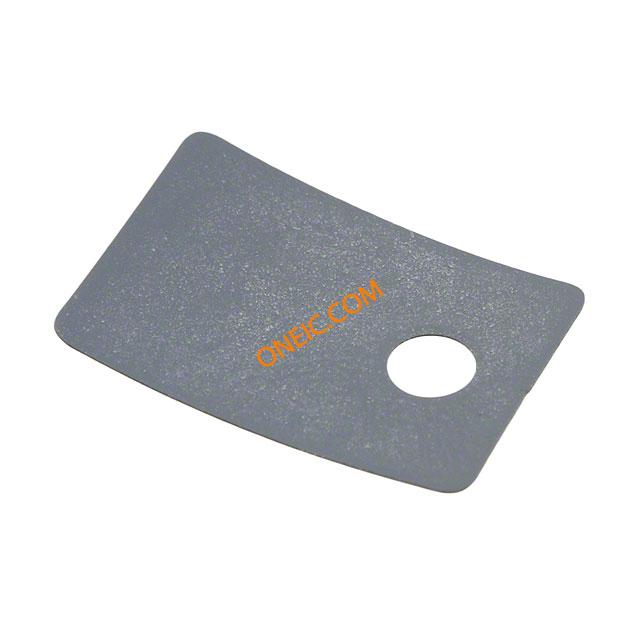

| Description | THERMAL PAD TO-220 .006" KAPTON Thermal Interface Products TO-220 .006 KAPTON Thrml Mgmt Access Thermal Insulator Gray 0.4°C/W 1.2X10e-3Cal/cm.sec.°C 1X10e19Ohm.cm SEMICONDUCTOR HARDWARE, INSULATORS Insulator;Kapton;Greaseless;0.006in. |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Subcategory | Thermal Management Accessories |
| Product Category | Thermal Interface Products | Standard Package | 1,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85411000 |
Electrical
| Voltage - Breakdown | 6 kV | ||
Mechanical
| Color | Gray | Depth | :0.15mm |
| Shape | Rectangular | Width | 0.5 in |
| Length | 0.71 in | Weight | 0.002 |

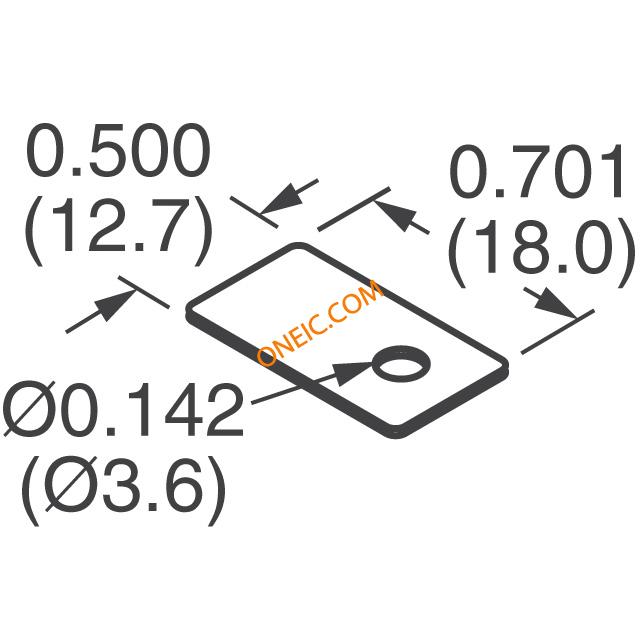

| Outline | 18.00mm x 12.70mm | Material | Kapton, Reinforced |
| Thickness | 0.0060" (0.152mm) | Package / Case | TO-220 |
| Width - Overall | :12.7mm | Dielectric Diameter | 5.5 |
| Material - Insulation | :- | Mounting Hole Diameter | :3.6mm |
Product Info
| Type | Thermally Conductive Insulator | Usage | TO-220 |
| Series | 175-6 | Backing, Carrier | Kapton® |
Environmental
| Thermal Resistivity | 0.40°C/W | Thermal Conductivity | 0.5 W/m-K |
