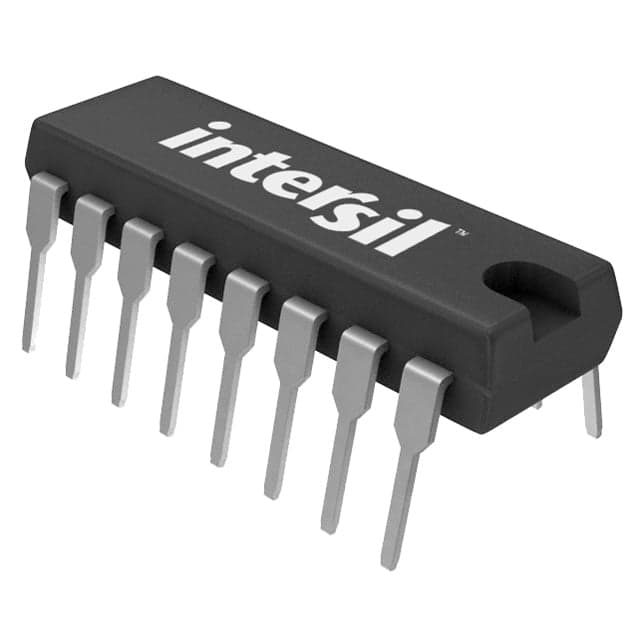

DG442DJ-E3
| Manufacturer | |
| Description | Analog Switch Quad SPST 16-Pin PDIP Analog Switch ICs SPST Analog Switch IC SWITCH QUAD SPST 16DIP IC, ANALOG SWITCH, QUAD, SPST, DIP-16 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1000 | Unit Pack | 25 |
| Other Names | DG442DJE3 | Product Category | Analog Switch ICs |
| Standard Package | Bulk, Rail / Tube | Factory Pack Quantity | 500 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85361010 | Rad Hardened | No |
Electrical
| Circuit | 4 x SPST - NO | Input Signal | Yes |
| Turn On Time | 450@12V ns | Power - Input | Single/Dual |
| Power - Rated | 0.45 W | Current - Output | 0.015 mA |
| Current - Supply | 0.1 mA | Delay Time - OFF | 210@±15V ns |
| Number of Inputs | 4 | Voltage - Supply | ±7 V |
| Number of Outputs | 4 | Power Supply Type | Single|Dual |
| Number of Channels | 4 | Voltage Supply Source | Single, Dual Supply |
| Switch Function/Rating | SPST | Power Dissipation (Max) | 450 mW |
| On-State Resistance (Max) | 160@10.8V Ohm | Voltage - Supply Span (Typ) | �9/�12/�15/�18 V |
| Switch Time (Ton, Toff) (Max) | 200 ns | Multiplexer/Demultiplexer Circuit | Quad SPST |
Mechanical
| Width | 7.11(Max) | Weight | 0.002 |
| Packaging | Tube | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :16 | Package / Case | 16PDIP |
| Package Cooled | PDIP | Length - Overall | 21.33(Max) |
| Package Quantity | PDIP | Number of Positions | 16 |
| Shell Size - Insert | 3.81(Max) | Supplier Device Package | 16-DIP |
Product Info
| Type | Analog Switch | DELETED | Compliant |
| Function | Switch | Polarity | Non-Inverting |
| Configuration | Quad SPST | Number of Switches | 4 |
| Printed Circuit Board | 16 | ||
Environmental
| Operating Temperature | + 85 C | ||
