DG390BDJ-E3
| Manufacturer | |
| Description | Analog Switch Dual SPDT 16-Pin PDIP Analog Switch ICs DPST Analog Switch IC SWITCH CMOS 16DIP ANALOG SWITCH, DUAL, SPDT, 15V, 16DIP DUALSPDTANALOGSWITCH Vishay 模拟开关, 双单刀双掷, 16针 PDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 500 | Unit Pack | 25 |
| Other Names | DG390BDJE3 | Product Category | Analog Switch ICs |
| Standard Package | Bulk, Rail / Tube | Factory Pack Quantity | 25 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85423190 | Rad Hardened | No |
Electrical
| Circuit | 2 x SPDT - NC/NO | Input Signal | Yes |
| Turn On Time | 150(Typ)@±15V ns | Power - Input | Single/Dual |
| Current - Output | 0.23 mA | Current - Supply | 1 mA |
| Delay Time - OFF | 130(Typ)@±15V ns | Number of Inputs | 4 |
| Voltage - Supply | ±7 V | Number of Outputs | 4 |
| Power Supply Type | Single|Dual | Number of Channels | 2 |
| Voltage Supply Source | Dual Supply | Switch Function/Rating | SPDT |
| Power Dissipation (Max) | 470 mW | On-State Resistance (Max) | 50@±15V Ohm |
| Voltage - Supply Span (Typ) | �9/�12/�15/�18 V | Switch Time (Ton, Toff) (Max) | 130 ns |
| Multiplexer/Demultiplexer Circuit | Dual SPDT | ||
Mechanical
| Weight | 0.001667 | Packaging | Tube |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :16 |
| Package / Case | 16PDIP | Package Cooled | PDIP |
| Material Finish | :- | Package Quantity | PDIP |
| Primary Material | AnalogSwitches | Number of Positions | 16 |
| Supplier Device Package | 16-PDIP | ||
Product Info
| Type | Analog Switch | DELETED | Compliant |
| Function | Switch | Polarity | Non-Inverting |
| Switch Type | :SPST | Configuration | Dual SPDT |
| Number of Switches | 2 | ||
Environmental
| Operating Temperature | + 85 C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

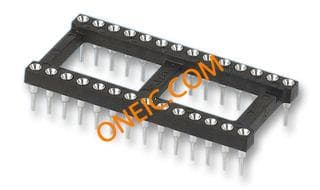

816-AG11D-LF
