RSSD25168A1R00KB06
| Manufacturer | |
| Description | Wirewound Resistors - Chassis Mount 200W 1ohm 5% fireproof RESISTOR 1.0 OHM 200W 10% WW Vishay 1Ω ±10% 200W High Power Wirewound Adjustable Resistor ±75ppm/°C Wirewound Resistors 200W 1ohm 5% fireproof RESISTOR, WW 200W 10% 1R0 Vishay RSSD 系列 200W 1Ω 10% 高功率线绕可调电阻器 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 6 | Product | Power Resistors Wirewound Vitreous Enamel |
| Unit Pack | 6 | Other Names | RSSD-1.0A |
| Standard Package | 6 | Factory Pack Quantity | 6 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85332900 |
Electrical
| Tolerance | 10 % | Resistance | 1 Ohms |
| Range deg/s | :VISHAY - RSSD Series | Power (Watts) | 200W |
| Power - Rated | 200 W | Resistance (Ohms) | 1 |
| Resistance Tolerance | :± 10% | Resistor - Base (R1) | :Solder Lug |
Mechanical
| Length | 6.614" (168.00mm) | Weight | 0.115 |
| Diameter | 1.063" OD, 0.646" ID (27.00mm x 16.40mm) | Base Type | :Tubular |
| Packaging | Bulk | Termination | Solder Lug |
| Mounting Type | Chassis Mount | Terminal Type | :AN collar |
| Package / Case | Cylinder, Tube | Size / Dimension | 27 mm Dia. x 168 mm L |
| Termination Style | Radial | Diameter - Outside | :27mm |
| Resistive Material | :Wirewound | ||
Product Info
| Type | Adjustable Wirewound Vitreous Resistors, Low Ohmic Values | Series | RSSD |
| Technology | Wire Wound | Adjustment Type | Slide |
Environmental
| Surge Rating (Watts) | :2000W | Operating Temperature | - 55 C to + 450 C |
| Temperature Coefficient | 75 PPM / C | Temperature Coefficient (Typ) | :75ppm/°C |
Documents & Media
Online Document
Similar Parts
ACCRF2EMN
Vishay/Sfernice
Resistor Hardware BRACKET FOR RW RA RSSD RSO 1PR FIXING ACCES FOR WW RES 1=2 PCS Bracket for 168x25mm wirewound resistors BRACKET, WIREWOUND RESISTOR Vishay 电阻器安装支架, 适用于绕线电阻器
$134.2346
Details

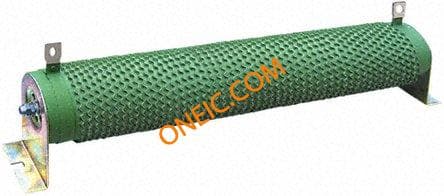

TE200B1R0J
