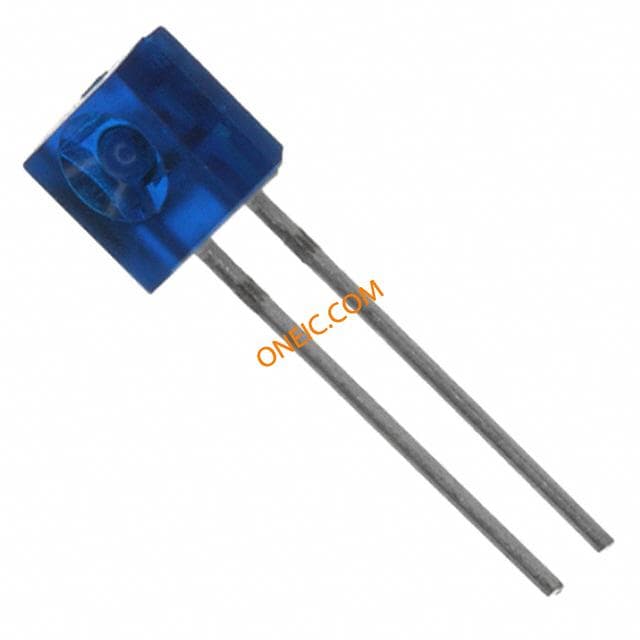

TSKS5400S-ASZ
| Manufacturer | |
| Description | IR-EM-SIDE VIEW SHORT LEADS/ 950NM 30 DEG LED IrLED 950nm 2-Pin T/R IR EMITTER, 1.3V LEDIRLED,TSKS5400S Vishay 红外线 LED, 950nm, 2针 通孔安装 侧面观看者封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 2000 | Unit Pack | 2000 |
| Standard Package | Ammo Pack | ||
Compliance
| RoHS | RoHS Compliant Part | EU RoHS | Compliant |
| Tariff No | 85366190 | ||
Electrical
| Lamp Output | Yes | Luminous Flux | 4.5 mW/sr |
| Viewing Angle | 60 ° | Rise Time (Typ) | :800ns |
| Voltage - Supply | :1.3V | Wavelength - Peak | 950 nm |
| Diode Configuration | :Side Looking | LED Forward Voltage | 1.7 |
| Power Dissipation (Max) | 170 | Current - DC Forward (If) (Max) | :100mA |
| Radiant Intensity (Ie) Min @ If | :4.5mW/Sr | Current - Peak Pulse (10/1000us) | 100 |
| Current - LED Trigger (Ift) (Max) | :100mA | Voltage - Gate Trigger (Vgt) (Max) | 6 |
Mechanical
| Width | 2.65 | Weight | 0.0001 |
| LED Color | :Infrared | Packaging | Tape and Reel |
| Lens Style | Circular | Mounting Type | Through Hole |
| Mounting Style | Right Angle | Number of Pins | :2 |
| Material - Core | GaAs | Length - Overall | 4.9 |
| Number of Positions | 2 | Shell Size - Insert | 4.9 |
Product Info
| Type | IrLED | Lens Type | Non Diffused |
| Number of LEDs | 1 | Printed Circuit Board | 2 |
Environmental
| Operating Temperature | :-25°C | ||
Documents & Media
PDF Document
