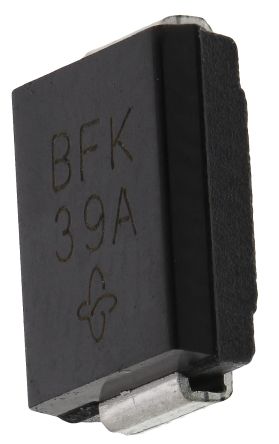

SMCJ30CA-E3/57T
| Manufacturer | |
| Description | Diode TVS Single Bi-Dir 30V 1.5KW 2-Pin SMC T/R TRANSIL BI 1,5KW 36V SMC TVS DIODE 30VWM 48.4VC SMC TVS Diode Bi-Directional SMCJ30CA-E3/57T 48.4V, 1500W, SMC 2-Pin TVS Diodes - Transient Voltage Suppressors 1500W 30V Bidirect Vishay 双向 TVS 二极管, 1500W, 48.4V, 2针 SMC封装 TVS-DIODE BI 1,5KW 36V SMC |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 850 | Tradename | TransZorb |
| Unit Pack | 850 | Other Names | SMCJ30CA-E3/57TGICT |
| Part # Aliases | SMCJ30CA-E3/9AT | Product Category | TVS Diodes - Transient Voltage Suppressors |
| Standard Package | Tape & Reel | Factory Pack Quantity | 850 |
| Standard Package Name | DO-214-AB | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Rad Hardened | No |
| ESD Protection | No | Leadfree Defin | RoHS-conform |
Electrical
| Channels | 1 Channel | Tolerance | 5% |
| Current - Surge | 31 A | Current - Output | 1 mA |
| Voltage - Supply | 30V | Current - Leakage | 0.001 uA |
| Number of Elements | 1 | Power - Peak Pulse | 1500 W |
| Voltage - Clamping | 48.4 V | Current - Trip (It) | 1 mA |
| Voltage - Breakdown | 33.3 V | Contact Voltage (Max) | 30V |
| Power Line Protection | No | Voltage - Input (Min) | 30 V |
| Bidirectional Channels | 1 | Voltage - Supply (Min) | 30 V |
| Power Dissipation (Max) | 1.5kW | Current - Peak Pulse (8/20us) | 31 A |
| Current - Reverse Leakage @ Vr | 1 uA | Current - Peak Pulse (10/1000us) | 31A |
| Voltage - Reverse Standoff (Typ) | 30 V | ||
Mechanical
| Width | 6.22(Max) | Packaging | Tape and Reel |
| Lead Style | J-Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 2SMC |
| Package Cooled | SMC | Length - Overall | 7.11(Max) |
| Package Quantity | SMC | Size / Dimension | 6.22 mm W x 7.11 mm L x 2.62 mm H |
| Termination Style | SMD/SMT | Number of Positions | 2 |
| Supplier Device Package | DO-214AB, (SMC) | ||
Product Info
| Type | Zener | Series | SMCJ |
| DELETED | Compliant | Polarity | Bidirectional |
| Matchcode | SMCJ30CA (BFK) | Applications | Telecom |
| Configuration | Single | Port Direction | Bi-Directional |
| Standard Leadtime | 12 weeks | Application Specifics | BIDIRECTIO |
| Printed Circuit Board | 2 | ||
Environmental
| Operating Temperature | -55 to 150 °C | Operating Temperature - Junction | -55 to 150 |
