点击放大查看

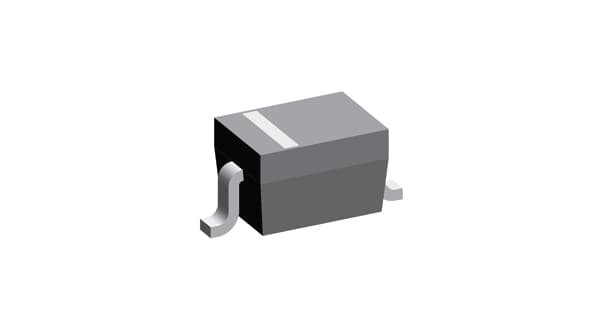

1N4148WS-V-GS18
| Manufacturer | |
| Description | Diode Small Signal Switching 100V 0.15A 2-Pin SOD-323 T/R SI-DIODE 0,15A 100V SOD323 DIODE, SMALL SIGNAL, 100V, SOD-323 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 10000 | Unit Pack | 10000 |
| Standard Package | Tape & Reel | Standard Package Name | SOD-323 |
Compliance
| EU RoHS | Compliant | Tariff No | 85411000 |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Current - Test | 100 uA | Current - Surge | :350mA |
| Voltage - Supply | 1.2@0.1A V | Voltage - Clamping | 100V |
| Diode Configuration | :Single | Current - Output (Typ) | 0.15A |
| Rds On (Max) @ Id, Vgs | 4ns | Power Dissipation (Max) | 200 |
| Reverse Recovery Time (trr) | 4 ns | Current - Peak Pulse (8/20us) | 0.35 A |
| Current - Average Rectified (Io) | 0.15 A | Voltage - Reverse Standoff (Typ) | 100 V |
| Current - LED Trigger (Ift) (Max) | :150mA | Current - Continuous Drain (Id) @ 25degC | 0.15 |
Mechanical
| Width | 1.5(Max) | Weight | 0.000001 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Number of Pins | :2 | Package / Case | 2SOD-323 |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 1.95(Max) |
| Package Quantity | SOD-323 | Number of Positions | 2 |
| Shell Size - Insert | 1.05(Max) | ||
Product Info
| Type | Small Signal Switching Diode | Matchcode | 1N4148WS-V |
| Diode Type | :Small Signal | Configuration | Single |
| Standard Leadtime | 14 weeks | Other Specifications | 0.5A |
| Printed Circuit Board | 2 | ||
Environmental
| Operating Temperature | -65 to 150 °C | Operating Temperature - Junction | -65°C |
