点击放大查看

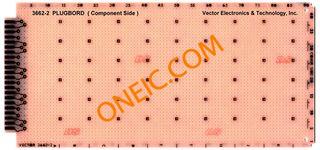

3662-2
| Manufacturer | |
| Description | Board; Plug; CEM-1; 4.50 in. H x 6.50 in. W; 0.042; 0.100 x 0.100; 0.062 in. General Purpose Plugboard Epoxy Glass Composite 16-Pin DIP Capacity 90 |
| Category |
对参数有疑问？问 AI 助手
Specifications
| Pitch | 0.100" (2.54mm) | Series | Vectorbord® Plugbord™ |
| Plating | Non-Plated Through Hole (NPTH) | Material | - |
| Packaging | Bulk | Part Status | Active |
| Manufacturer | Vector Electronics | Edge Contacts | 44 @ 0.156" (3.96mm) |
| Hole Diameter | 0.042" (1.07mm) | Board Thickness | 0.062" (1.57mm) 1/16" |
| Circuit Pattern | - | Proto Board Type | Plugboard, Card Edge |
| Size / Dimension | 9.60" L x 4.50" W (243.8mm x 114.3mm) | Base Product Number | 3662 |
Documents & Media
PDF Document
