点击放大查看

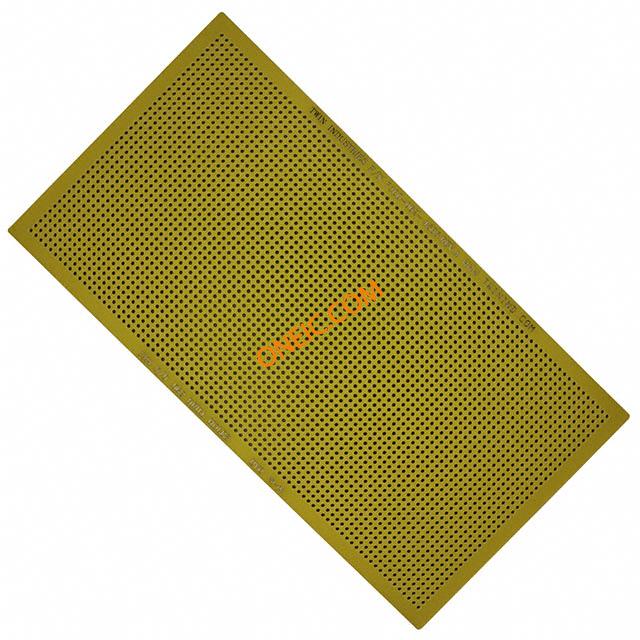

7100-062-4585
| Manufacturer | |
| Description | PCBs & Breadboards .1 Grid .062 Holes .5X 8.5; FR4 PC BOARD 4.5"X8.5" UNCLAD 0.1" PCB, PROTOTYPE BOARD, FR4 ProtoBoard.1Grid.062Holes.5X8.5 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Prototyping Boards | Product Category | PCBs & Breadboards |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85340019 |
Mechanical
| Size | 8.5"L×4.5"W | Pitch | 0.1" (2.54mm) Grid |
| Width | 127 mm | Length | 101.6 mm |
| Weight | 0 | Footprint | :- |
| Height (Max) | :215.9mm | Hole Diameter | 0.042" (1.57mm) |
| Board Thickness | 0.062" (1.57mm) 1/16" | Material - Body | :FR4 |
| Contact Material | Epoxy, Glass Reinforced | Size / Dimension | 8.50" L x 4.50" W (215.9mm x 114.3mm) |
| Mounting Hole Diameter | 0.062" | ||
Product Info
| Type | Perforated | Function | Prototyping board |
| Pattern Type | Non-PTH | Proto Board Type | Breadboard, Prepunched Insulating |
