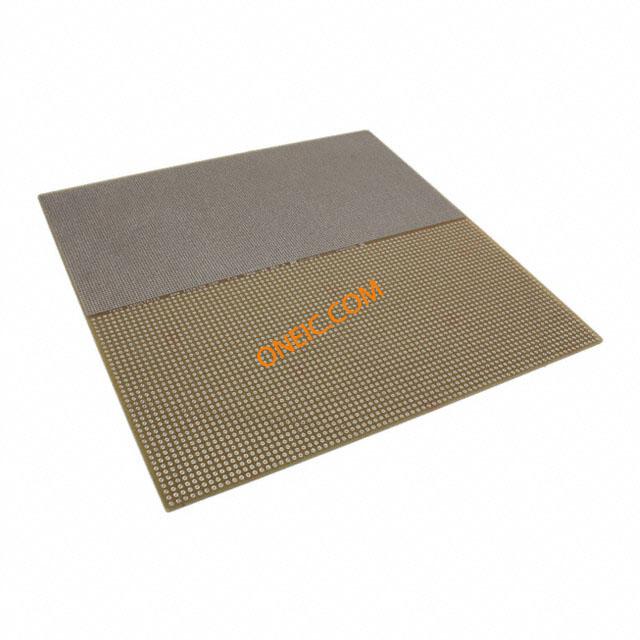

7050-100
| Manufacturer | |
| Description | PCBs & Breadboards 4X8 on .05 Grid 4X8 on .10 Grid BOARD PROTOTYPING .05/0.1" 8X8" PROTOTYPEBOARD |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Prototyping Boards | Product Category | PCBs & Breadboards |
| Standard Package | 1 | ||
Compliance
| RoHS | No | ||
Electrical
| Circuit Pattern | Pad Per Hole (Round) | ||
Mechanical
| Size | 8"L×8"W | Pitch | 0.05" (1.27mm), 0.1" (2.54mm) Grid |
| Width | 203.2 mm | Length | 101.6 mm |
| Material | FR-4 | Hole Diameter | 0.026" (0.66mm), 0.035" (0.89mm) |
| Board Thickness | 0.062" (1.57mm) 1/16" | Contact Material | Epoxy, Glass Reinforced |
| Size / Dimension | 8.00" L x 8.00" W (203.2mm x 203.2mm) | Mounting Hole Diameter | 0.035,0.026" |
Product Info
| Type | Through Hole | Function | Prototyping board |
| Pattern Type | GroundPlane,PTH | Proto Board Type | Breadboard, General Purpose |
