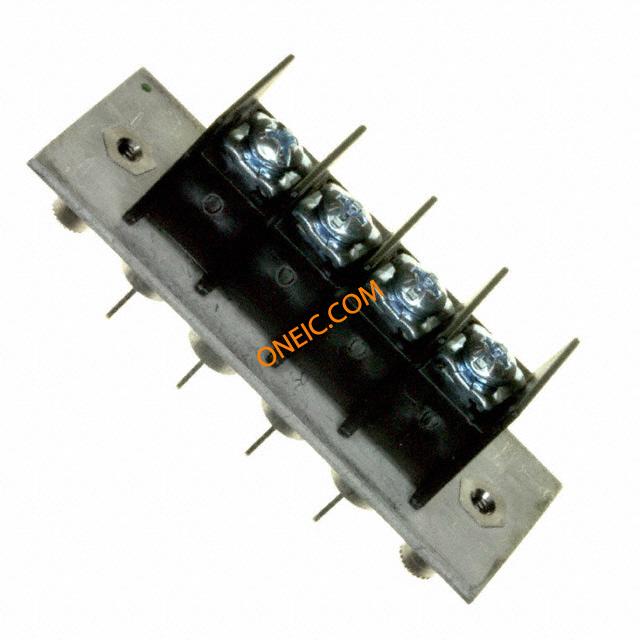

7604-551NLF
| Manufacturer | |
| Description | Barrier Terminal Blocks 4 term. -40C +105C +2000pF Rear Pnl Mnt TERM BLOCK 4P FIL 2500/5000PF PI |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Barrier Terminal Blocks | Product Category | Barrier Terminal Blocks |
| Standard Package | 12 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 100 V | Current Rating (Max) | 20 A |
Mechanical
| Pitch | 11.1 mm | Width | 25.4 mm |
| Height | 39.62 mm | Length | 68.33 mm |
| Packaging | Tray | Mounting Type | Vertical |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Top Termination | Screws with Captive Plate | Housing Material | Thermoplastic |
| Termination Style | Screw | Bottom Termination | PC Pin |
| Number of Contacts | 4 | Terminal Block Type | Barrier Block |
| Material - Insulation | Polybutylene Terephthalate (PBT) | Number of Wire Entries | 4 |
| Wire Gauge or Range - mm2 | 12 | ||
Product Info
| Type | Wire to Board | Features | Filter 2500/5000pF, Flange |
| Barrier Type | 2 Wall (Dual) | Number of Circuits | 4 |
Environmental
| Operating Temperature | - 40 C to + 105 C | ||
