RC-4
| Manufacturer | |
| Description | Fixed Inductors 1.5mH .5A RODCORE INDUCTOR 1.5mH .500A ROD CORE Inductor;High Frequency;Ind 1.5mH;Tol +/-10%;Cur 0.5A;Thru-Hole;DCR 1.53 Ohms Ind High Current Rod Core Wirewound 1.5mH 10% 500mA RDL Inductor;HighFrequency;Ind1.5mH;Tol10%;Cur0.5A;Thru-Hole;DCR1.53Ohms |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Fixed Inductors | Standard Package | 1 |
| Factory Pack Quantity | 126 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Tolerance | 15 % | Inductance | 1.5 mH |
| DC Resistance (DCR) | 1.53 Ohm | Current Rating (Max) | 0.5 A |
| Resistance - Initial (Ri) (Min) | 1.53 Ohms | ||
Mechanical
| Width | 9.53 mm | Weight | 0.768000 oz |
| Diameter | 9 mm | Packaging | Bulk |
| Shielding | Unshielded | Termination | PCB,Radial |
| Mounting Type | Through Hole | Mounting Style | PCB |
| Package / Case | 3.81 mm | Length - Overall | 0.15" |
| Size / Dimension | 9 mm Dia. x 9.53 mm W x 9.3 mm L x 3.81 mm H | Termination Style | Radial |
| Diameter - Outside | 0.032" | Height - Seated (Max) | 0.930" (23.62mm) |
Product Info
| Type | Wirewound | Series | RC-4 |
Environmental
| Temperature | +40°C | ||
Documents & Media
Similar Parts
CMT908K
Triad Magnetics
Inductor Kits & Accessories ENCAP TOROIDAL KIT COMMON MODE TOROIDAL INDUCTOR KIT, 8 PCS
$174.9246
Details
4004
3M Electronic Specialty
Adhesive Tapes 1/4x18YD FOAM TAPE
$0.8901
Details

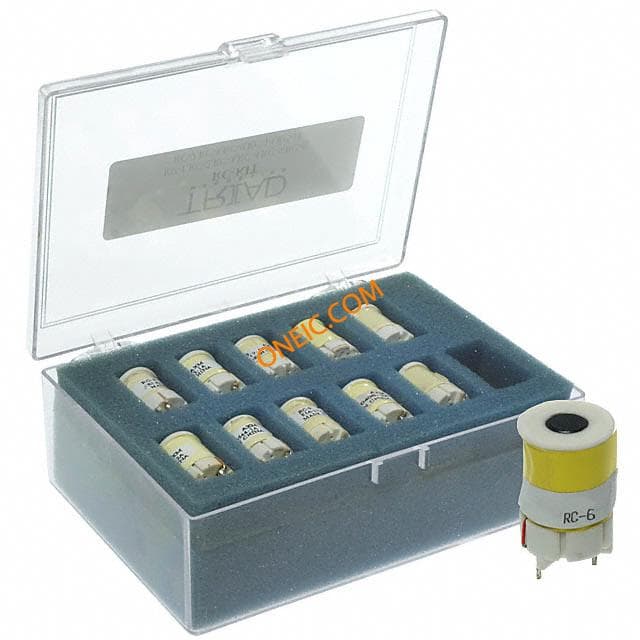

RC-KIT
Triad Magnetics
KIT INDUCTOR ROD CORE RC SERIES
$113.0500
Details

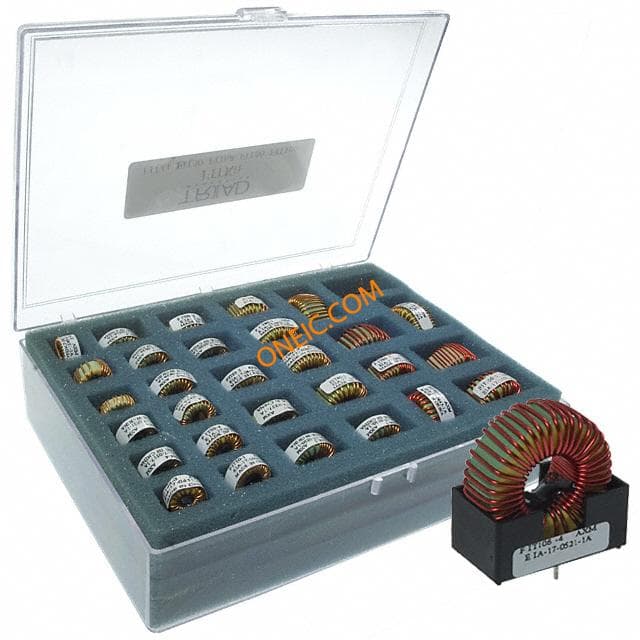

FIT-KIT
