CST206-2A
| Manufacturer | |
| Description | Current Transformers 56mH 80A SENSING TRANSF 56MH CRNT SENSE Transformer;Current Sense;Ind 56mH;Cur 80A;PCB;DCR 3.5 Ohms Current Transformer Sensors 56mH 80A SENSING Current Transformer 1:200 3.5Ohm Prim. DCR 56000uH Prim. 80000mA Prim. 2Term. PC Pin Thru-Hole Transformer;CurrentSense;Ind56mH;Cur80A;PCB;DCR3.5Ohms |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Current Transformer Sensors | Factory Pack Quantity | 126 |
Compliance
| RoHS | RoHS Compliant | Standards | UL |
Electrical
| Frequency | 20-200kHz | Inductance | 56 mH |
| Number of Outputs | 1 | DC Resistance (DCR) | 3.5Ohms |
| Current Rating (Max) | 80 A | Phase Noise Typ (dBc/Hz) | 1 |
| Current - Supply (Main IC) | 80A | DC Resistance (DCR) - Primary | 250μOhms(Max.) |
| Turns Ratio - Primary:Secondary | 1:500 | ||
Mechanical

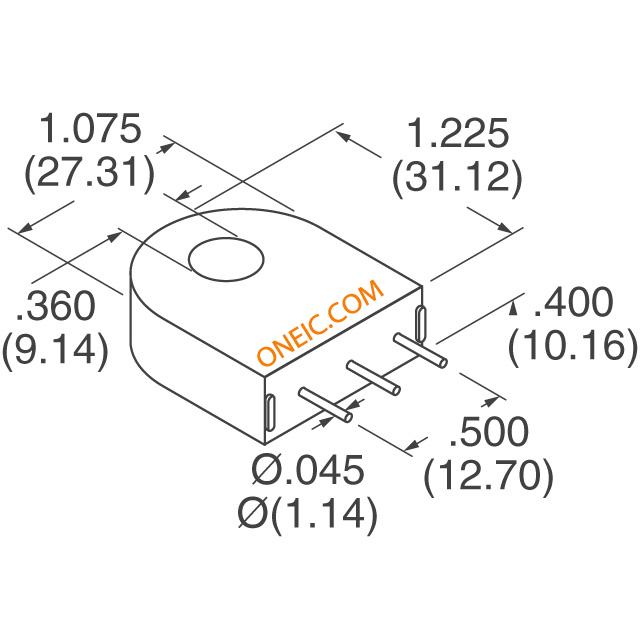

| Width | 0.4 in | Height | 1.225 in |
| Length | 1.075 in | Weight | 0.576000 oz |
| Termination | Thru-Hole | Mounting Style | Through Hole |
| Size / Dimension | 1.075"L×0.4"W×1.225"H | ||
Product Info
| Type | CurrentSense | Manufacturer | CSTSeries |
| Configuration | Encapsulated | Number of Turns | 200 |
Environmental
| Temperature Rating | 130°C | Operating Temperature | +40°C |
