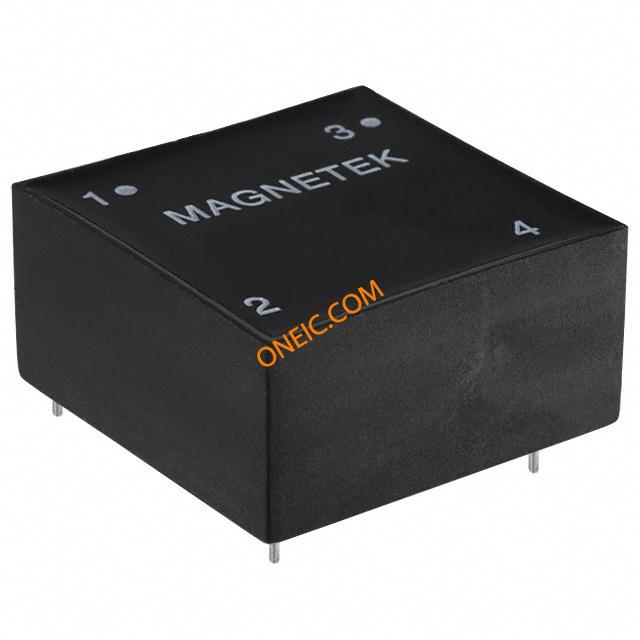

CMT908-H3
| Manufacturer | |
| Description | Common Mode Filters / Chokes 8mH 3.2A TOROID コモンモード フィルタ /チョーク 8mH 3.2A TOROID INDUCTOR 8MH COMMON MODE HORIZ Common Mode Chokes Dual 8mH 10kHz 3.2A Thru-Hole Induc Inductor;CommonMode;Ind8mH;Cur3.2A;Thru-Hole;DCR0.12Ohms |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Inductors | メーカ | Triad Magnetics |
| Product Category | Common Mode Filters / Chokes | Standard Package | 1 |
| Factory Pack Quantity | 126 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 00000000 |
Electrical
| Current | 3.2A | Tolerance | 10 % |
| Inductance | 8 mH | Filter Type | Power Line |
| Current - Leakage | 90 | Resistance - Input | 120 mOhms |
| DC Resistance (DCR) | 120 mOhm Max | Current Rating (Max) | 3.2 A |
| Resistance - Initial (Ri) (Min) | 0.12 Ohms | Current - Supply (Disable) (Max) | 3.2 A |
Mechanical

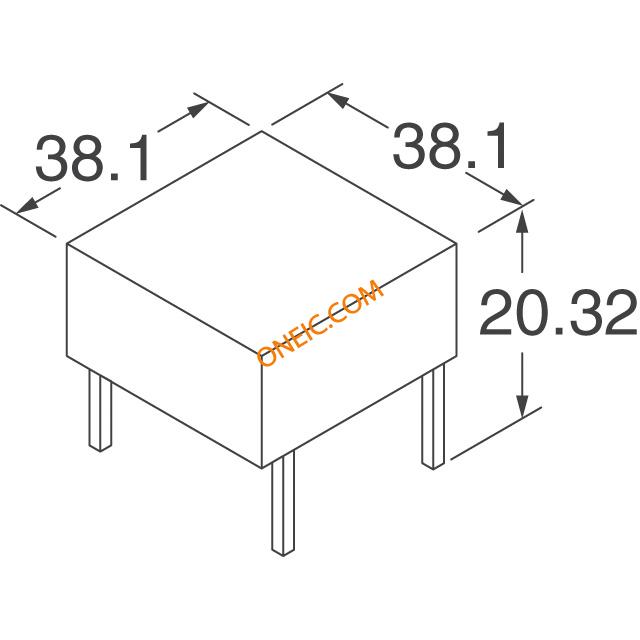

| Size | 1.5 in W x 1.5 in L x 0.8 in H | Width | 1.5 in |
| Height | 0.8in. | Length | 1.5in. |
| Weight | 2.352000 oz | Packaging | Bulk |
| End - Size | Radial | Size - Body | 1.5 in |
| Termination | PCB,Radial | Height (Max) | 0.8 in |
| Mounting Type | Through Hole | Mounting Style | PCB |
| Package / Case | 0.8 in | Length - Overall | 0.092to0.187" |
| Size / Dimension | 1.5 in W x 1.5 in L x 0.8 in H | Termination Style | Radial |
| Diameter - Outside | 0.029sq.in. | ||
Product Info
| Type | Switchmode/High Frequency Common Mode Inductor | Product Type | Inductors |
| Card Standard | コモンモード フィルタ /チョーク | Number of Lines | 2 |
| Number of Units | 126 | ||
