点击放大查看
CMT908-H1
| Manufacturer | |
| Description | Common Mode Filters / Chokes 2mH 7.5A TOROID INDUCTOR 2MH COMMON MODE HORIZ Inductor;Common Mode;Ind 2mH;Cur 7.5A;Thru-Hole;DCR 0.02 Ohms Common Mode Chokes Dual 2mH 10kHz 7.5A Thru-Hole TOROIDAL INDUCTOR, 2MH, 7.5A, 10% Inductor;CommonMode;Ind2mH;Cur7.5A;Thru-Hole;DCR0.02Ohms |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Common Mode Filters / Chokes | Standard Package | 1 |
| Factory Pack Quantity | 126 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85045020 |
Electrical
| Current | 7.5A | Tolerance | 10 % |
| Inductance | 2 mH | Filter Type | Power Line |
| Range deg/s | :TRIAD MAGNETICS - CMT Series | Current - Leakage | 25 |
| Current Rating - DC | :7.5A | DC Resistance (DCR) | 20 mOhm Max |
| Current Rating (Max) | 7.5 A | DC Resistance (DCR) (Max) | :0.02ohm |
| Resistance - Initial (Ri) (Min) | 0.02 Ohms | ||
Mechanical
| Width | 20.32 mm | Height | 0.8in. |
| Length | 1.5in. | Weight | 2.352000 oz |
| Packaging | Bulk | Termination | PCB,Radial |
| Height (Max) | 0.800" (20.32mm) | Mounting Type | Through Hole |
| Mounting Style | PCB | Package / Case | 15.24 mm |
| Length - Overall | 0.092to0.187" | Size / Dimension | 20.32 mm W x 36.83 mm L x 15.24 mm H |
| Termination Style | Radial | Diameter - Outside | 0.043sq.in. |
| Dimensions - Overall | :38.1mm x 38.1mm x 20.32mm | ||
Product Info
| Type | CommonMode | Number of Lines | 2 |
Documents & Media
PDF Document
Similar Parts
CMT908K
Triad Magnetics
Inductor Kits & Accessories ENCAP TOROIDAL KIT COMMON MODE TOROIDAL INDUCTOR KIT, 8 PCS
$174.9246
Details
24-6040-0027
Kester
Solder 60/40 .031 DIA. 1LB SPOOL SOLDER RA 60/40 21AWG 1LB SolderWire;highlyactiveRAflux;Sn60Pb40;.031dia;core66;1lb
$375.9094
Details
4004
3M Electronic Specialty
Adhesive Tapes 1/4x18YD FOAM TAPE
$0.8901
Details

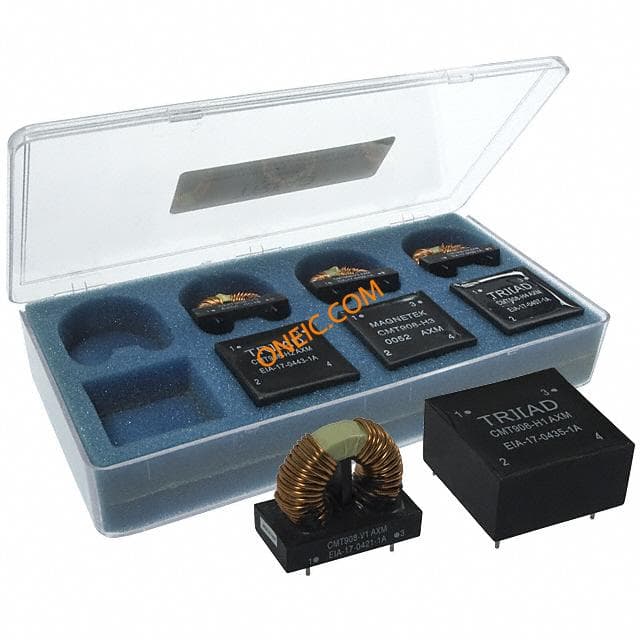

CMT908-KIT
