点击放大查看
CME375-9
| Manufacturer | |
| Description | Common Mode Filters / Chokes 176.1mH .087A E-CORE コモンモード フィルタ /チョーク 176.1mH .087A E-CORE INDUCTOR 176.1MH COMMON MODE Inductor;Common Mode;Ind 176.1mH;Cur 0.87A;Thru-Hole;DCR 1.98 Ohms Common Mode Chokes Dual 176.1mH 870mA Thru-Hole Inductor;CommonMode;Ind176.1mH;Cur0.87A;Thru-Hole;DCR1.98Ohms |
| Category |
对参数有疑问？问 AI 助手
Business
| メーカ | Triad Magnetics | Product Category | Common Mode Filters / Chokes |
| Standard Package | 1 | Factory Pack Quantity | 126 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current | 870mA | Tolerance | 10 % |
| Inductance | 176.1 mH | Filter Type | Power Line |
| Current - Leakage | 1.8 | Resistance - Input | 1.98 Ohms |
| DC Resistance (DCR) | 1.98 Ohm Max | Current Rating (Max) | 0.87 A |
| Resistance - Initial (Ri) (Min) | 1.98 Ohms | Current - Supply (Disable) (Max) | 0.87 A |
Mechanical
| Size | 32 mm W x 38.1 mm L x 15.24 mm H | Width | 32 mm |
| Height | 1.18in. | Length | 1.5in. |
| Weight | 2.560000 oz | Packaging | Bulk |
| End - Size | Radial | Size - Body | 38.1 mm |
| Termination | PCB,Radial | Height (Max) | 15.24 mm |
| Mounting Type | Through Hole | Mounting Style | PCB |
| Package / Case | 15.24 mm | Length - Overall | 0.092to0.187" |
| Size / Dimension | 32 mm W x 38.1 mm L x 15.24 mm H | Termination Style | Radial |
| Diameter - Outside | 0.036sq.in. | ||
Product Info
| Type | CommonMode | Card Standard | コモンモード フィルタ /チョーク |
| Number of Lines | 2 | Number of Units | 126 |
Documents & Media
Similar Parts
CMT908K
Triad Magnetics
Inductor Kits & Accessories ENCAP TOROIDAL KIT COMMON MODE TOROIDAL INDUCTOR KIT, 8 PCS
$174.9246
Details
24-6040-0027
Kester
Solder 60/40 .031 DIA. 1LB SPOOL SOLDER RA 60/40 21AWG 1LB SolderWire;highlyactiveRAflux;Sn60Pb40;.031dia;core66;1lb
$375.9094
Details
4004
3M Electronic Specialty
Adhesive Tapes 1/4x18YD FOAM TAPE
$0.8901
Details

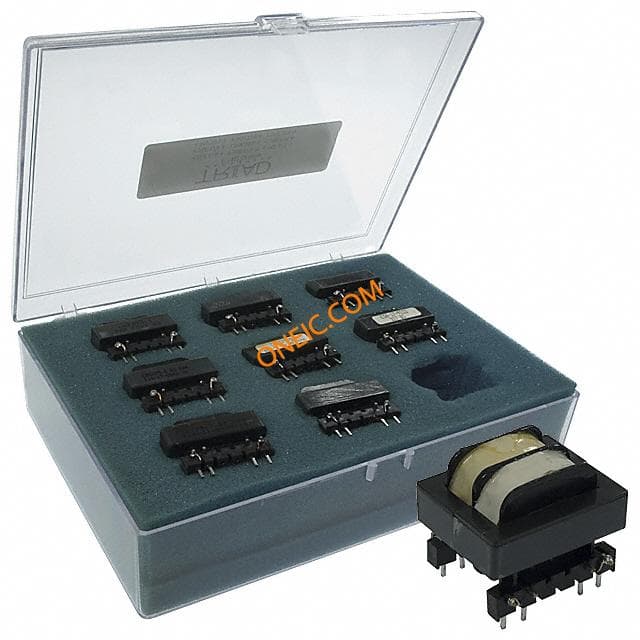

CME375-KIT
