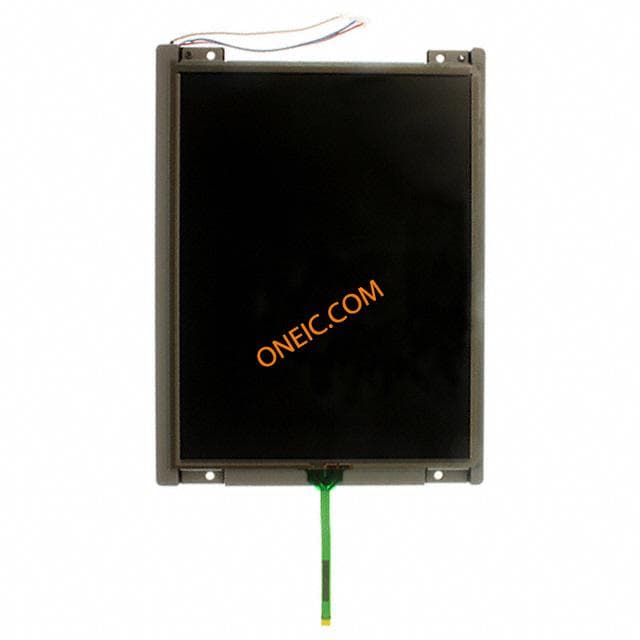

LTA084C270F
| Manufacturer | |
| Description | TFT Module 8.4in SVGA 800x600Pixels LVDS 24-Pin 8.4in. SVGA TFT CCFL backlit LVDS |
| Category |
对参数有疑问？问 AI 助手
Compliance
| EU RoHS | Compliant | ||
Electrical
| Backlight | CCFL | Interface | LVDS |
| Response Time | 25 | Viewing Angle | 120/100 |
| Resolution (Bits) | SVGA | Power (Typ) @ Conditions | 5.9 |
Mechanical
| Width | 149.5 | Mounting Type | Screw |
| Length - Overall | 199.5 | Outline L x W x H | 199.5x149.5x12 |
| Number of Positions | 24 | Shell Size - Insert | 12(Max) |
Product Info
| Active Area | 170.4x127.8 | Touchscreen | No |
| Pixel Format | 800x600 | Size - Display | 8.4 |
| Other Specifications | 4:3 | Printed Circuit Board | 24 |
Environmental
| Operating Temperature | 70 | Luminous Flux @ Current/Temperature | 400 |
Documents & Media
PDF Document
