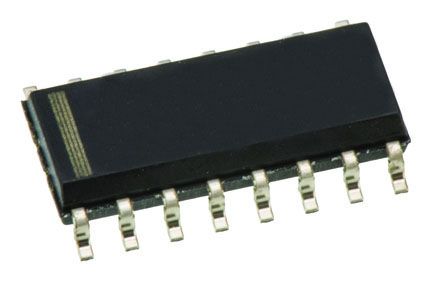

点击放大查看
ULN2004AD
| Manufacturer | |
| Description | Trans Darlington NPN 50V 0.5A 16-Pin SOIC Tube TRANS 7 NPN DARL 50V 500MA 16SO ULN2004AD, Darlington Transistor Array, NPN 0.5A 50V, Array 7, 16-Pin, SOIC Darlington transistor array,ULN2004AD Peripheral Drivers & Components - PCIs Hi V & A Darlington High-Voltage, High-Current Darlington Transistor Array Darlington Transistor Array SOIC-16, ULN2004, ULN2004AD, Texas Instruments NPN 达林顿晶体管对, 0.5 A 50 V, 16针 SOIC封装 Darlington Transistors Hi V & A Darlington |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-12965-5 | Product Category | Peripheral Drivers & Components - PCIs |
| Standard Package | Rail / Tube | Factory Pack Quantity | 40 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Delay Time | 250 | Input Type | CMOS |
| Voltage Rating | 50 | Transistor Type | 7 NPN Darlington |
| Current - Output | 0.5 | Voltage - Supply | 50V |
| Switching Voltage | 50 | Number of Elements | 7 |
| Voltage - Output 4 | 900 | Current - Input Bias | 0.5 |
| Current Rating (Max) | Catalog | Vce Saturation (Max) | 1.1 V |
| Current - Peak Output | 500 | Voltage - Input (Min) | 50 V |
| Voltage - Output (Max) | 50 | Vce(on) (Max) @ Vge, Ic | 1.6 V |
| Current - Off State (Max) | 50 | Current - Output / Channel | 500 |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 350mA, 500µA | Current - Collector (Ic) (Max) | 500mA |
| Current - Collector Cutoff (Max) | 0.5 A | Current - Collector Pulsed (Icm) | 0.5 A |
Mechanical
| Width | 3.91mm | Height | 1.58mm |
| Length | 9.9mm | Weight | 0.004998 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 16 | Package / Case | 16SOIC |
| Package Cooled | SOIC | Length - Overall | 10(Max) |
| Package Quantity | SOIC | Size / Dimension | 9.9 x 3.91 x 1.58mm |
| Number of Positions | 16 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 16-SOIC | ||
Product Info
| Type | NPN | Design | 7 Channel |
| Series | ULN2004A | DELETED | Compliant |
| Polarity | NPN | Software | SLRS027N |
| Manufacturer | Texas Instruments | Configuration | Array 7 |
| Compatible Tools | CMOS 6...15 V | Number of Drivers | 7 |
| Functional Diagram | fbd_slrs027n.gif | Utilized IC / Part | View |
| Printed Circuit Board | 16 | ||
Environmental
| Temperature - Test | -20 to 70 | Operating Temperature | +70 °C |
