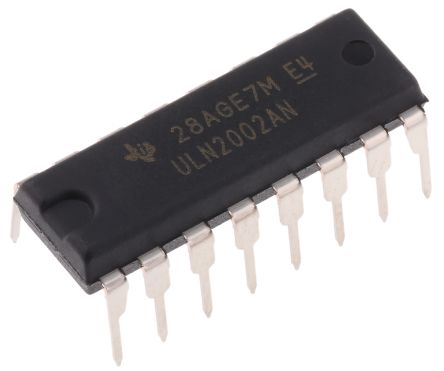

ULN2002AN
| Manufacturer | |
| Description | Trans Darlington NPN 50V 0.5A 16-Pin PDIP Tube TRANS 7 NPN DARL 50V 500MA 16DIP ULN2002AN, Darlington Transistor Array, NPN 0.5A 50V, Array 7, 16-Pin, PDIP Transistors Darlington Hi-Vltg Hi-Crnt Darl Transistor Arrays DARLINGTON TRANSISTOR, NPN, 50V, DIP-16 High-Voltage, High-Current Darlington Transistor Arrays NPN 达林顿晶体管对, 0.5 A 50 V, 16针 PDIP封装 Darlington Transistors Hi-Vltg Hi-Crnt Darl Transistor Arrays |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Transistors Darlington | Standard Package | Rail / Tube |
| Factory Pack Quantity | 25 | Standard Package Name | PDIP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Delay Time | 250 | Input Type | CMOS |
| Voltage Rating | 50 | Transistor Type | 7 NPN Darlington |
| Voltage - Supply | 50V | Switching Voltage | 50 |
| Number of Elements | 7 | Voltage - Output 4 | 900 |
| Current Rating (Max) | Catalog | Vce Saturation (Max) | 1.1 V |
| Current - Peak Output | 500 | Voltage - Input (Min) | 50 V |
| Current - Off State (Max) | 50 | Current - Output / Channel | 500 |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 500µA, 350mA | Current - Collector (Ic) (Max) | 500mA |
| Current - Collector Cutoff (Max) | 0.5 A | Current - Collector Pulsed (Icm) | 0.5 A |
Mechanical
| Width | 6.35mm | Height | 4.57mm |
| Length | 19.3mm | Weight | 0.033570 oz |
| Packaging | Tube | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :16 | Package / Case | 16PDIP |
| Package Cooled | PDIP | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 19.69(Max) | Package Quantity | PDIP |
| Size / Dimension | 19.3 x 6.35 x 4.57mm | Number of Positions | 16 |
| Shell Size - Insert | 5.08(Max) - 0.51(Min) | Supplier Device Package | 16-PDIP |
Product Info
| Type | NPN | Series | ULN2002A |
| DELETED | Compliant | Polarity | NPN |
| Software | SLRS027N | Configuration | Array 7 |
| Number of Drivers | 7 | Functional Diagram | fbd_slrs027n.gif |
| Utilized IC / Part | View | Printed Circuit Board | 16 |
Environmental
| Temperature - Test | -20 to 70 | Operating Temperature | +70 °C |
