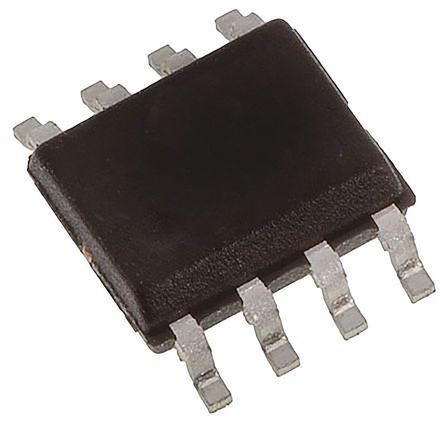

UCC3913D
| Manufacturer | |
| Description | NEG VOLT HOT SWAP PWR MANAGER Hot Swap Controller 1-CH 8-Pin SOIC Tube IC NEG VOLT POWER MGR 8-SOIC Hot Swap Voltage Controllers Neg Floating Single Commercial Temp. Negative Floating Single, Hot-Swap IC Commercial Temp. 负电压 热交换控制器, 8针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Controllers & Switches | Other Names | 296-2335-5 |
| Product Category | Hot Swap Voltage Controllers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 75 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
| Fault Protection | Auto-Retry | ||
Electrical
| FET Type | N-通道 | External FET | N-Channel |
| Linear Range | Negative Voltage | Voltage Rating | -10.5 |
| Input Impedance | 是 | Current - Output | 1mA |
| Current - Supply | 20 mA | Voltage - Supply | - 10.5 V |
| Number of Channels | 1 | Current Rating (Max) | Catalog |
| External Sense Resistor | Yes | Current - Short Circuit (Isc) | Adjustable |
| Common Mode Transient Immunity (Min) | Commercial | Voltage - Protection Level (VP) (2416) | -9999 |
Mechanical
| Depth | 3.91 mm | Width | 3.91mm |
| Height | 1.58 mm | Length | 4.9mm |
| Weight | 0.002561 oz | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 8 |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Package Cooled | SOIC |
| Screw Head Type | 负电压 | Length - Overall | 4.9 mm |
| Package Quantity | SOIC | Size / Dimension | 4.9 x 3.91 x 1.58mm |
| Number of Contacts | CT, IMAX, PL, SD/FLT | Number of Positions | 8 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 8-SOIC |
Product Info
| Type | Negative Voltage | Design | Calculation Tool |
| Series | UCC3913 | Features | Auto Retry, UVLO |
| Function | Y | Software | SLUS274A |
| Applications | -48V | Main Purpose | Auto Retry, UVLO |
| Manufacturer | Texas Instruments | Internal Switch(s) | No |
| RF Family/Standard | UCC3913 | Utilized IC / Part | View |
| Internal Connection | No | Channels per Circuit | 1 |
| Other Specifications | Always | Printed Circuit Board | 8 |
| Programmable Features | Circuit Breaker, Current Limit, Fault Timeout | ||
Environmental
| Temperature - Test | 0 to 70 | Operating Temperature | 0 °C |
| Operating Temperature - Junction | 70C | ||
