UCC38500DW
| Manufacturer | |
| Description | Power Factor Correction PWM CONTRLR 0.15mA 115KHz 20-Pin SOIC IC PFC/PWM CONTROLLER 20-SOIC Power Factor Correction - PFC BiCMOS PFC/PWM Comb Controller IC, PFC/PWM CONTROLLER 20-SOIC BiCMOS PFC/PWM Combination Controller |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-11518-5 | Product Category | Power Factor Correction - PFC |
| Standard Package | Rail / Tube | Factory Pack Quantity | 25 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Frequency | :100kHz | Duty Cycle | 100 |
| Operating Mode | CCM | Current - Output | 0.15 mA |
| Current - Supply | 4 | Voltage - Supply | 9.7 V ~ 18 V |
| Current - Startup | 150µA | Number of Outputs | :1 |
| Voltage - Threshold | 16/10 | Current Rating (Max) | Catalog |
| Frequency - Switching | 115 kHz | Voltage - Input (Min) | :18V |
| Voltage - Supply (Min) | 18 V | Common Mode Transient Immunity (Min) | Commercial |
| Voltage - Continuous Operating (Max) (MCOV) | :15V | ||
Mechanical
| Width | 7.6(Max) | Weight | 0.020071 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :20 |
| Package / Case | 20SOIC | Package Cooled | SOIC |
| Material Finish | :MSL 2 - 1 year | Length - Overall | 13(Max) |
| Package Quantity | SOIC | Number of Positions | 20 |
| Shell Size - Insert | 2.35(Max) | Supplier Device Package | 20-SOIC |
Product Info
| Mode | Average Current | Type | Power Factor Correction and PWM Controller |
| Series | UCC38500 | Features | < 150W Applications Average Current Mode Enable OVP |
| Software | SLUS419C | Base Unit | :38500 |
| Utilized IC / Part | View | Printed Circuit Board | 20 |
Environmental
| Temperature - Test | 0 to 70 | Operating Temperature | 0 to 70 °C |
Documents & Media
PDF Document
Online Document
Similar Parts
TL431CD
texas instruments
V-Ref Adjustable 2.495V to 36V 100mA 8-Pin SOIC Tube IC VREF SHUNT PREC ADJ 8-SOIC TL431CD, Adjustable Voltage Reference 2.5 to 36V, 2% 100mA 37V Max. 8-Pin SOIC Voltage References Adj Shunt SHUNT REG ADJ +2.5/36V, SOIC8, 431 Adjustable Precision Shunt Regulator Voltage reference 2.495...36 V SOIC-8, TL431, TL431CD, Texas Instruments Texas Instruments 可调 2.5 - 36V 电压参考, ±2.0 %精确度, 100mA, 37 V输入, 8针 SOIC封装
$2.4249
Details

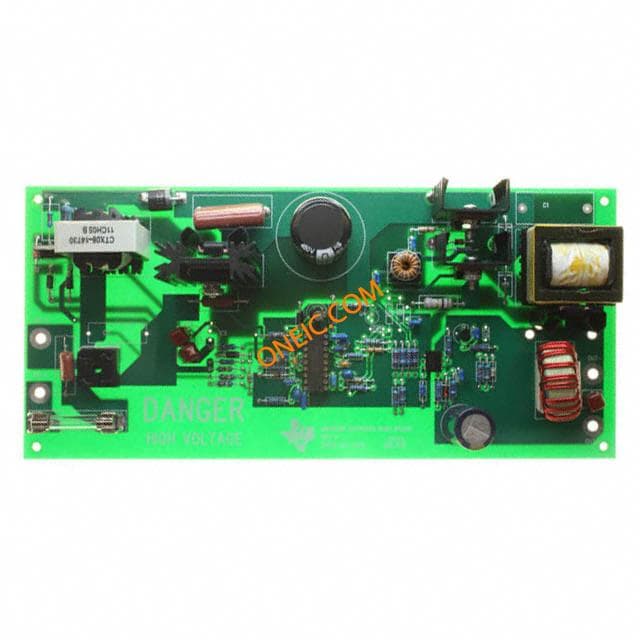

UCC38500EVM
