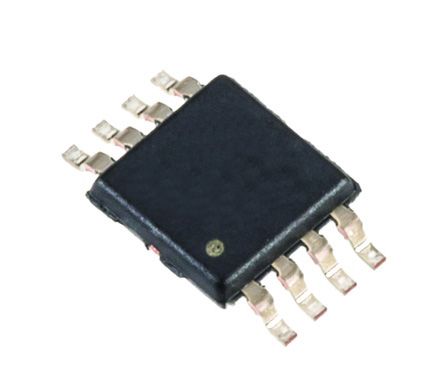

TS5A3359DCUT
| Manufacturer | |
| Description | Analog Switch Single SP3T 8-Pin VSSOP T/R Analog Switch ICs 1-Ohm SP3T Analog Switch IC SWITCH SP3T US8 IC, SP3T ANALOG SWITCH 8-VSSOP 1-Ohm SP3T Analog Switch 5-V/3.3-V Single-Channel 3:1 Multiplexer/Demultiplexer Texas Instruments 模拟开关, 单-单刀三掷, 3.3 V、5 V电源电压, 8针 VSSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-32595-1 | Product Category | Analog Switch ICs |
| Standard Package | Tape & Reel | Factory Pack Quantity | 250 |
| Standard Package Name | SSOP | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Circuit | 1 x SP3T | Channels | 1 |
| Input Signal | Yes | Turn On Time | 85@1.8V ns |
| Power - Input | Single | Current - Output | 0.000016 mA |
| Current - Supply | 0.00005 mA | Delay Time - OFF | 16@1.8V ns |
| Number of Inputs | 1 | Voltage - Supply | 1.65 V |
| Number of Outputs | 3 | Power Supply Type | Single |
| Number of Channels | 1 | Current Rating (Max) | Catalog |
| Voltage Supply Source | Single Supply | Switch Function/Rating | SP3T |
| On-State Resistance (Max) | 2.5@1.65V Ohm | Voltage - Supply Span (Typ) | Not Required V |
| Switch Time (Ton, Toff) (Max) | 13 ns | Multiplexer/Demultiplexer Circuit | Single SP3T |
Mechanical
| Width | 2.4(Max) | Weight | 0.000339 oz |
| Bandwidth | :100MHz | Packaging | Reel |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8VSSOP |
| Package Cooled | VSSOP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 2.1(Max) | Package Quantity | VSSOP |
| Number of Positions | 8 | Shell Size - Insert | 0.8(Max) |
| Supplier Device Package | US8 | ||
Product Info
| Type | Analog Switch | Series | TS5A3359 |
| DELETED | Compliant | Features | Break-before-make Low Harmonic Distortion Low Power |
| Function | Switch | Polarity | Non-Inverting |
| Software | SCDS214D | Base Unit | :5 |
| Switch Type | :SP3T | Configuration | Single SP3T |
| Functional Diagram | fbd_scds214d.gif | Number of Switches | 1 |
| Utilized IC / Part | View | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | + 85 C |
