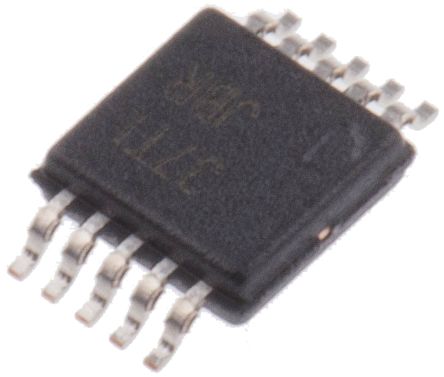

TS5A23157DGSR
| Manufacturer | |
| Description | Analog Switch Dual SPDT 10-Pin VSSOP T/R Analog Switch ICs Dual 10-Ohm SPDT Analog Switch IC SWITCH DUAL SPDT 10MSOP Dual 10-Ohm SPDT Analog Switch Texas Instruments 模拟单刀双掷开关, 双单刀双掷, 3 V 5 V电源电压, 10针 MSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-17076-2 | Product Category | Analog Switch ICs |
| Standard Package | Cut Tape, Tape & Reel | Factory Pack Quantity | 2500 |
| Standard Package Name | SSOP | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Circuit | 2 x SPDT | Channels | 2 |
| Crosstalk | Yes | Input Type | 单端 |
| Input Signal | Yes | Turn On Time | 24@1.95V@-40C to 85C ns |
| Output Signal | 差分 | Power - Input | Single |
| Current - Output | 1µA | Current - Supply | 0.001 mA |
| Delay Time - OFF | 13@1.95V@-40C to 85C ns | Number of Inputs | 2 |
| Voltage - Supply | 1.8 V | Number of Outputs | 4 |
| Power Supply Type | Single | Number of Channels | 2 |
| Number of Elements | 2 | Voltage - Breakdown | 5 V |
| Current Rating (Max) | Catalog | Voltage Supply Source | Single Supply |
| Switch Function/Rating | SPDT | On-State Resistance (Max) | 140@1.65V Ohm |
| Voltage - Supply Span (Typ) | Not Required V | Switch Time (Ton, Toff) (Max) | 3.8 ns |
| Multiplexer/Demultiplexer Circuit | Dual SPDT | ||
Mechanical
| Width | 3mm | Height | 1.02mm |
| Length | 3mm | Bandwidth | 220 |
| Packaging | Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 10 | Package / Case | 10VSSOP |
| Package Cooled | VSSOP | Length - Overall | 3.1(Max) |
| Package Quantity | VSSOP | Size / Dimension | 3 x 3 x 1.02mm |
| Number of Positions | 10 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 10-VSSOP | ||
Product Info
| Type | Analog Switch | Series | TS5A23157 |
| DELETED | Compliant | Features | Break-before-make Low Harmonic Distortion |
| Function | Switch | Polarity | Non-Inverting |
| Software | SCDS165E | Switch Type | 模拟 |
| Manufacturer | Texas Instruments | Configuration | Dual SPDT |
| Pattern Number | Y | Channels per IC | 双单刀双掷 |
| Functional Diagram | fbd_scds165e.gif | Number of Switches | 2 |
| Utilized IC / Part | View | Printed Circuit Board | 10 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | + 85 C |
