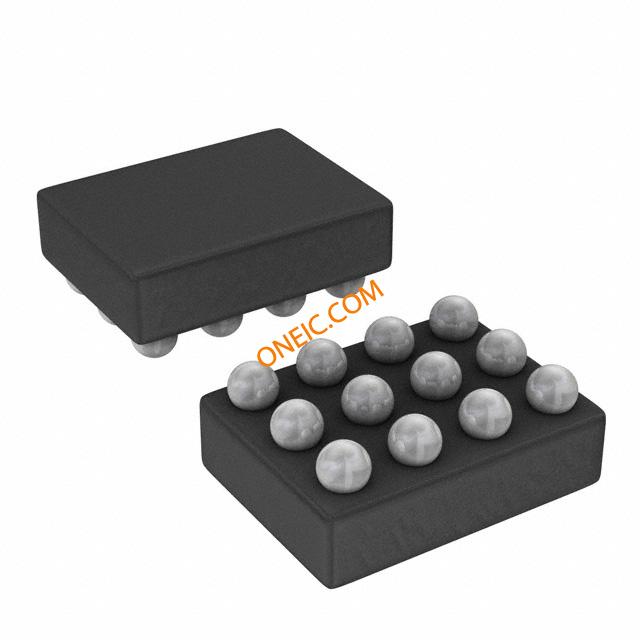

TS5A22366YFCR
| Manufacturer | |
| Description | Analog Switch Dual SPDT 12-Pin DSBGA T/R Analog Switch ICs 0.7-Ohm Dual SPDT Analog Switch IC SWITCH DUAL SPDT 12DSBGA IC, SWITCH, DUAL, SPDT, 12DSBGA IC, ANALOG SWITCH, DUAL, SPDT, 12-DSBGA 0.7-Ohm Dual SPDT Analog Switch With Negative Rail Capability |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-24479-2 | Product Category | Analog Switch ICs |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
| Standard Package Name | BGA | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Circuit | 2 x SPDT | Channels | 2 |
| Input Signal | Yes | Turn On Time | 374@5V ns |
| Power - Input | Single | Current - Output | 6µA |
| Current - Supply | 0.014 mA | Delay Time - OFF | 325@5V ns |
| Number of Inputs | 4 | Voltage - Supply | 2.25 V |
| Number of Outputs | 2 | Power Supply Type | Single |
| Number of Channels | 2 | Current - Switching | 0.007 mA |
| Current Rating (Max) | 0.007 mA | Voltage Supply Source | Dual Supply |
| Switch Function/Rating | SPDT | On-State Resistance (Max) | 1.8@2.25V Ohm |
| Voltage - Supply Span (Typ) | Not Required V | Switch Time (Ton, Toff) (Max) | 325 ns |
| Multiplexer/Demultiplexer Circuit | Dual SPDT | ||
Mechanical
| Width | 1.17 | Weight | 0.00027 |
| Bandwidth | :32MHz | Packaging | Reel |
| Lead Style | Ball | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :12 |
| Package / Case | 12DSBGA | Package Cooled | DSBGA |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 1.57 |
| Package Quantity | DSBGA | Number of Positions | 12 |
| Shell Size - Insert | 0.48 | Supplier Device Package | 12-DSBGA (1.6x1.2) |
Product Info
| Type | Analog Switch | Series | TS5A22366 |
| DELETED | Compliant | Features | Break-before-make Low Harmonic Distortion |
| Function | Switch | Polarity | Non-Inverting |
| Software | SCDS262B | Base Unit | :22366 |
| Switch Type | :SPDT | Configuration | Dual SPDT |
| Number of Switches | 2 | Utilized IC / Part | View |
| Printed Circuit Board | 12 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | + 85 C |
