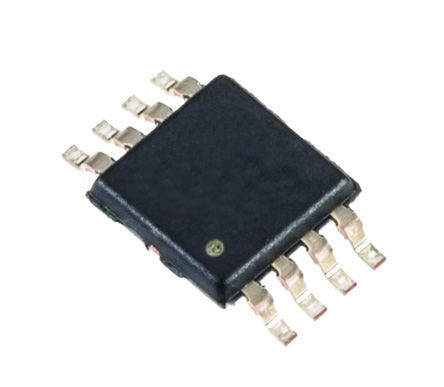

TS5A2066DCUR
| Manufacturer | |
| Description | Analog Switch Dual SPST 8-Pin VSSOP T/R Analog Switch ICs 10-Ohm Dual SPST Analog Sw IC SWITCH DUAL SPST US8 IC, ANLG SW 10R DUAL SPST 8VSSOP Dual-Channel 10-Ohm SPST Analog Switch Texas Instruments 模拟开关, 双单刀单掷, 1.65 → 5.5 V电源电压, 8针 VSSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-17877-2 | Product Category | Analog Switch ICs |
| Standard Package | Tape & Reel, Cut Tape | Factory Pack Quantity | 3000 |
| Standard Package Name | SSOP | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Circuit | 2 x SPST - NO | Channels | 2 |
| Crosstalk | Yes | Turn On Time | 11.5@1.8V ns |
| Power - Input | Single | Current - Output | 0.0001 mA |
| Current - Supply | 1 uA | Delay Time - OFF | 5.2@1.8V ns |
| Number of Inputs | 2 | Voltage - Supply | 1.65 V |
| Number of Outputs | 2 | Power Supply Type | Single |
| Number of Channels | 2 | Current Rating (Max) | Catalog |
| Voltage Supply Source | Single Supply | Switch Function/Rating | SPST |
| On-State Resistance (Max) | 120@1.65V Ohm | Voltage - Supply Span (Typ) | Not Required V |
| Switch Time (Ton, Toff) (Max) | 4.9 ns | Multiplexer/Demultiplexer Circuit | Dual SPST |
Mechanical
| Width | 2.4(Max) | Weight | 0.000339 oz |
| Bandwidth | :300MHz | Packaging | Reel |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8VSSOP |
| Package Cooled | VSSOP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 2.1(Max) | Package Quantity | VSSOP |
| Number of Positions | 8 | Shell Size - Insert | 0.8(Max) |
| Supplier Device Package | US8 | ||
Product Info
| Type | Analog Switch | Series | TS5A2066 |
| Features | Low Harmonic Distortion Low Power | Function | Switch |
| Polarity | Non-Inverting | Software | SCDS184D |
| Base Unit | :5 | Switch Type | :SPST |
| Configuration | Dual SPST | Number of Switches | 2 |
| Utilized IC / Part | View | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | + 85 C |
