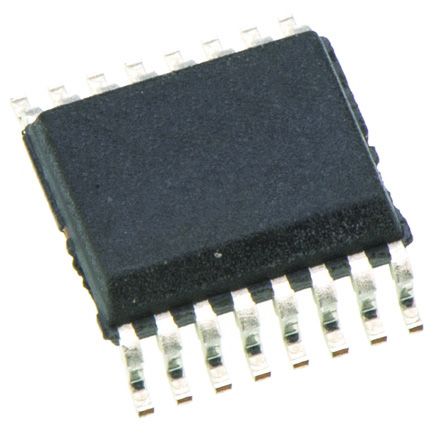

TS3A5018DBQR
| Manufacturer | |
| Description | Analog Switch Quad SPDT 16-Pin SSOP T/R Analog Switch ICs 10-Ohm Quad SPDT Analog Switch IC SWITCH QUAD SPDT 16SSOP SWITCH, ANALOG QUAD SPDT, SSOP16 10-Ohm Quad SPDT Analog Switch Texas Instruments 模拟单刀双掷开关, 四单刀双掷, 3 V电源电压, 16针 SSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-17609-2 | Product Category | Analog Switch ICs |
| Standard Package | Cut Tape, Tape & Reel | Factory Pack Quantity | 2500 |
| Standard Package Name | SSOP | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Circuit | 4 x SPDT | Channels | 4 |
| Crosstalk | Yes | Input Signal | Yes |
| Turn On Time | 9.5@2.5V ns | Power - Input | Single |
| Current - Output | 0.0025 mA | Current - Supply | 0.007 mA |
| Delay Time - OFF | 7.5@2.5V ns | Number of Inputs | 4 |
| Voltage - Supply | 2.3 V | Number of Outputs | 8 |
| Power Supply Type | Single | Number of Channels | 4 |
| Current Rating (Max) | Catalog | Resistance - RDS(On) | :7ohm |
| Voltage Supply Source | Single Supply | Switch Function/Rating | SPDT |
| On-State Resistance (Max) | 20@2.3V Ohm | Voltage - Supply Span (Typ) | Not Required V |
| Switch Time (Ton, Toff) (Max) | 7.5 ns | Multiplexer/Demultiplexer Circuit | Quad SPDT |
Mechanical
| Width | 4(Max) | Weight | 0.002628 oz |
| Bandwidth | :300MHz | Packaging | Reel |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :16 | Package / Case | 16SSOP |
| Package Cooled | SSOP | Material Finish | :MSL 2 - 1 year |
| Length - Overall | 5(Max) | Package Quantity | SSOP |
| Number of Positions | 16 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 16-SSOP | ||
Product Info
| Type | Analog Switch | Series | TS3A5018 |
| DELETED | Compliant | Features | Low Harmonic Distortion Low Power |
| Function | Switch | Polarity | Non-Inverting |
| Software | SCDS189G | Base Unit | :3 |
| Switch Type | :SPDT | Configuration | Quad SPDT |
| Functional Diagram | fbd_scds189g.gif | Number of Switches | 4 |
| Utilized IC / Part | View | Printed Circuit Board | 16 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | + 85 C |
Documents & Media
Similar Parts
RE931-02
Roth Elektronik

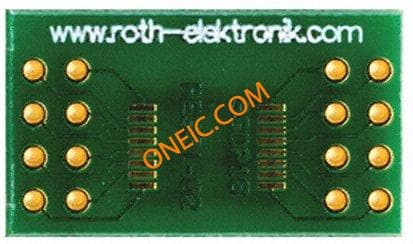

RE931-02, Surface Mount (SMT) Board SSOP Epoxy Glass Double-Sided 23.5 x 13.5 x 1.5mm FR4 PCB, ADAPTOR, SMD, SSOP-16, 0.65MM SMDmulti-adaptorSSOP-16pin,RE931-02 Board: universal; double sided, multiadapter; W:61.4mm; L:81.7mm Laboratory card 16P 0.65 mm FR4 Epoxide + chem. Ni/Au, RE931-02, Roth Elektronik
