TRF3705IRGET
| Manufacturer | |
| Description | Modulator / Demodulator 300MHz to 4GHz Quad- rature Modulator Quadrature Mod 24-Pin VQFN EP T/R IC QUADRATURE MODULATOR 24VQFN 300MHz to 4GHz Quadrature Modulator , 正交 调制器, 3.1dB, 3.15 → 3.6 V, 24针 VQFN封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-31995-1 | Product Category | Modulator / Demodulator |
| Standard Package | 250 | Factory Pack Quantity | 250 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | ||
Electrical
| IIP3 | 30 | Load | 300MHz ~ 4GHz |
| P1dB | 13.7dBm | Frequency | 4000 |
| Modulation | Quadrature | Noise Floor | -160dBm/Hz |
| Power (dBm) | 13.7dBm | LO Frequency | 300MHz ~ 4GHz |
| Output Power | 2.1 dBm | RF Frequency | 300MHz ~ 4GHz |
| Power - Output | 7dBm | Test Frequency | 1.85GHz |
| Voltage Rating | 3.15 | Frequency - Max | 4 GHz |
| Frequency - Min | 300 MHz | Current - Output | 35 uA |
| Current - Supply | 35 uA | Voltage - Supply | 3.3 V |
| Current Rating (Max) | 306mA | Voltage - Input (Min) | 0.25 |
| Voltage - Supply (Min) | 3.3 V | Current - Average Rectified (Io) | 306 mA |
Mechanical
| Width | 4.15mm | Height | 0.95mm |
| Length | 4.15mm | Packaging | Reel |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 24 |

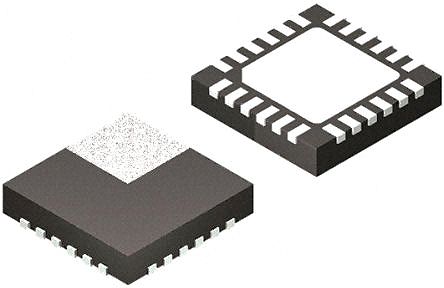

| Package / Case | VQFN-24 | Size, Supplied | -45 |
| Screw Head Type | 正交 | Length - Overall | 4.15(Max) |
| Package Quantity | VQFN EP | Size / Dimension | 4.15 x 4.15 x 0.95mm |
| Number of Positions | 24 | Shell Size - Insert | 0.95(Max) |
Product Info
| Type | Modulator | Series | TRF3705 |
| RF Type | 300MHz ~ 4GHz | Function | Modulator |
| Software | SLWS223A | Manufacturer | Texas Instruments |
| Programmable | No | Pattern Number | Y |
| Development Kit | TRF3705EVM | Backing, Carrier | -45 |
| Functional Diagram | fbd_slws223a.gif | Utilized IC / Part | View |
| Other Specifications | - 1.9 dB | Printed Circuit Board | 24 |
| Modulation or Protocol | Quadrature | ||
Environmental
| Mechanical Life | New Product: New from this manufacturer. | Temperature - Test | -40 to 85 |
| Operating Temperature | + 85 C | ||
