TPS92210DR
| Manufacturer | |
| Description | Natural PFC LED Lighting Driver Controller 8-Pin SOIC T/R LED Lighting Drivers Nat PFC LED Lighting Driver Controller IC PFC LED DVR CTRLR 8SOIC Constant-On Time Driver Controller with Cascoded MOSFET for LED Lighting |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-25782-2 | Product Category | LED Lighting Drivers |
| Standard Package | Tape & Reel | Factory Pack Quantity | 2500 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Output | 1 | Dimming | Analog |
| Power Factor | Natural | Voltage Rating | 9 V to 20 V |
| Current - Output | 1.5 A | Voltage - Supply | 9 V ~ 20 V |
| Number of Outputs | 1 | Voltage Reference | 0.7 |
| Current Rating (Max) | Catalog | Frequency - Switching | 130 |
| Current - Quiescent (Iq) | 3 | Common Mode Transient Immunity (Min) | Automotive |
Mechanical
| Width | 4(Max) | Packaging | Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 8SOIC |
| Package Cooled | SOIC | Length - Overall | 5(Max) |
| Package Quantity | SOIC | Primary Material | General Purpose |
| Number of Positions | 8 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 8-SOIC | ||
Product Info
| Note | Cascoded MOSFET Current Sense 120VAC/230VAC/277VAC Application Voltage Ranges | Type | White LED |
| Series | TPS92210 | Features | Integrated Switch Soft Switching Thermal Shutdown |
| Software | SLUS989B | Topology | AC DC Offline Switcher, PWM |
| Manufacturer | Texas Instruments | Pattern Number | Y |
| Functional Diagram | alt_slus989b.gif | Internal Switch(s) | No |
| Utilized IC / Part | View | Internal Connection | No |
| Output Configuration | Surface Mount | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40 to 125 °C |
| Operating Temperature - Junction | 125C | ||
Documents & Media
PDF Document
Similar Parts

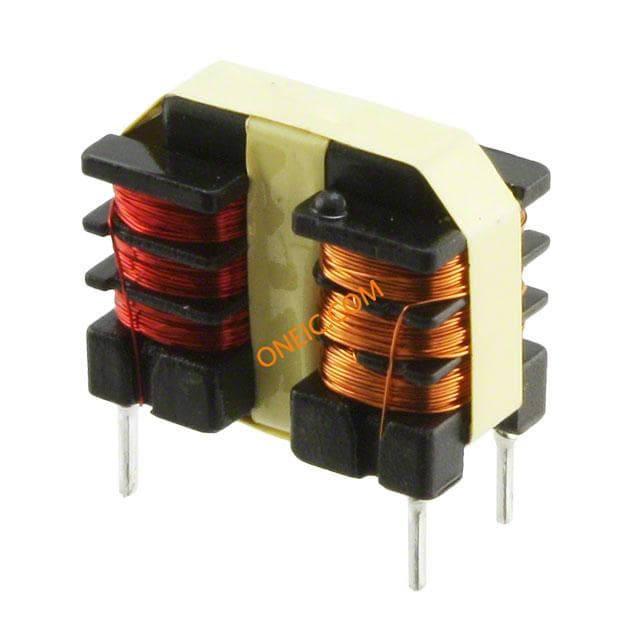

750311650
Midcom / Wurth Electronics
Transformers Audio & Signal Common Mode Choke for US and Europe CHOKE COM MODE TPS92210DR 45MH
$20.8488
Details

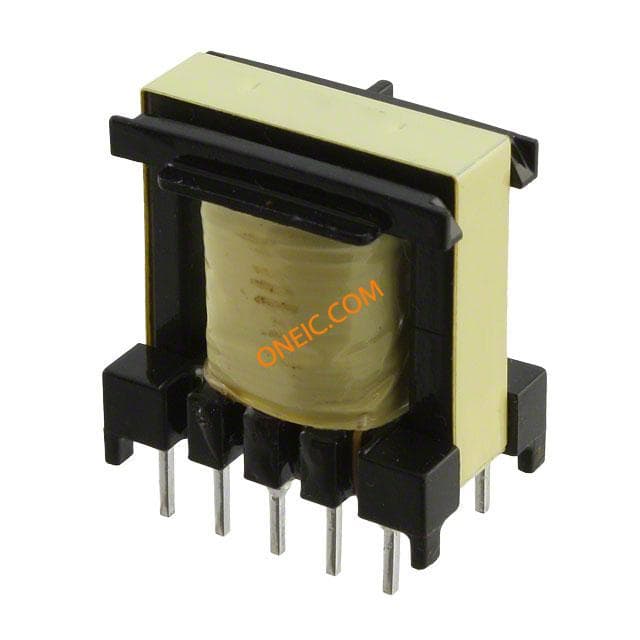

750811148
Midcom / Wurth Electronics
Transformers Audio & Signal Flyback Transformer for US TRANS FLYBACK TPS92210DR 430UH
$35.7000
Details

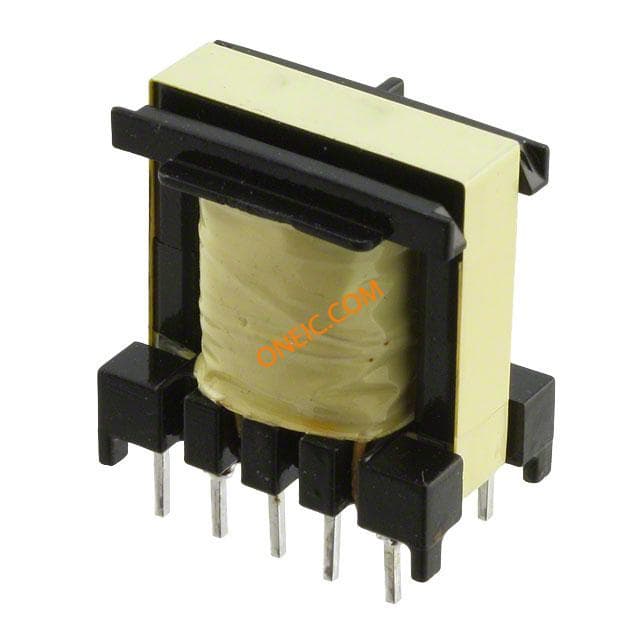

750811145
