TPS715AXXEVM-065
| Manufacturer | |
| Description | Evaluation Module Is Designed To Help The User Easily Evaluate And Test The Operation And Functionality Of The TPS715AXX Power Management IC Development Tools TPS715AXX-065 Eval Mod EVALUATION MODULE FOR TPS715AXX TPS715AXXEVM-065 EVALUATION MODULE EVAL BOARD, TPS715AXX ADJ 80mA LDO REGULATOR |
| Category |
Business
| Product | Power Management Modules | Other Names | 296-21170 |
| Product Category | Power Management IC Development Tools | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | RoHS Not Applicable | Tariff No | 84733020 |
Electrical
| Regulator Type | Positive Fixed and Adjustable | Voltage Rating | 3 V to 24 V |
| Current - Output | 80mA, 80mA | Number of Elements | :TPS715AXX |
| Voltage - Input (Min) | 3.3V, 5V | ||
Mechanical
| Weight | 1 | Packaging | Reel |
| Board Thickness | Bare (Unpopulated) | Size / Dimension | 39.4 mm x 27.9 mm |
Product Info
| Type | Development Kit | Contents | Board |
| Kit Type | :Power Management | Kit Contents | :Evaluation Board for TPS715AXX |
| Channels per IC | 1 - Single | Tool Type Feature | TPS715Ax |
| Utilized IC / Part | TPS715A01, TPS715A33 | Chipset Manufacturer | :Texas Instruments |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Similar Parts
TPS715A01DRBR
texas instruments
LDO Regulator Pos 1.2V to 15V 0.08A 8-Pin VSON EP T/R IC REG LDO ADJ 80MA 8SON LDO Voltage Regulators 80-mA Output Adj 24-V, 80-mA, Low Iq, Low-Dropout Linear Regulator
TPS715A33DRBT
texas instruments
LDO Regulator Pos 3.3V 0.08A 8-Pin VSON EP T/R IC REG LDO 3.3V 80MA 8SON TPS715A33DRBT, Low Dropout Voltage Regulator, 0.08A, 3.3V ±4%, 2.5 to 24Vin, 2.5W, 8-Pin SON EP LDO Voltage Regulators 80-mA 3.3-V Output V REG LDO 80MA +3.3V, 715A33, SON-8 24-V, 80-mA, Low Iq, Low-Dropout Linear Regulator Texas Instruments , LDO 调节器, 80mA, 3.3 V输出 ±4%, 2.5 → 24 V输入, 2.5W, 8针 SON封装
TPS715A33DRBTG4
texas instruments
LDO Regulator Pos 3.3V 0.08A 8-Pin VSON EP T/R IC REG LDO 3.3V 80MA 8SON LDO Voltage Regulators 80-mA 3.3-V Output 24-V, 80-mA, Low Iq, Low-Dropout Linear Regulator

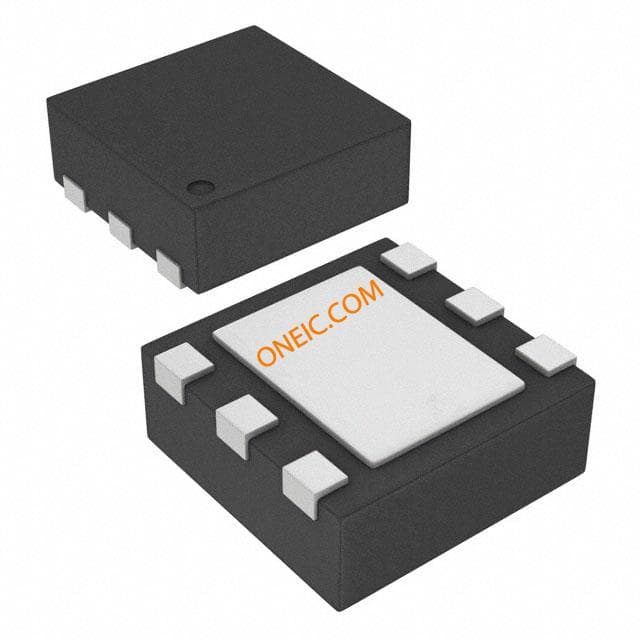

TPS715A33DRVT
