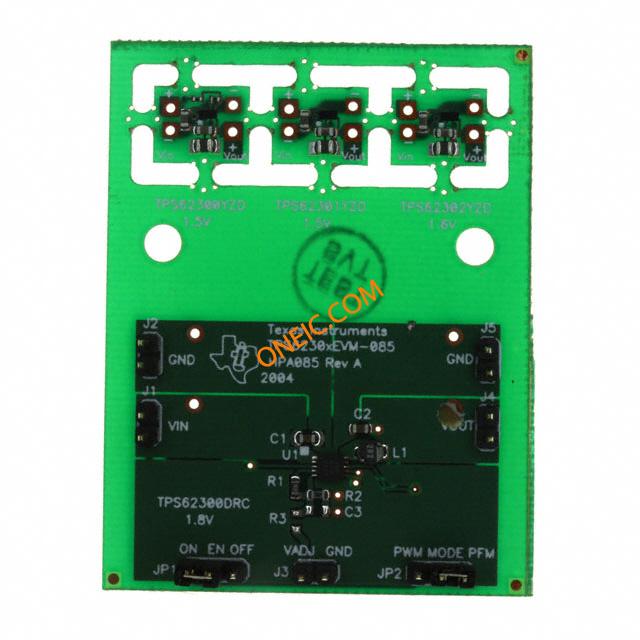

TPS62300EVM-085
| Manufacturer | |
| Description | Evaluation Module For TPS62300085 Power Management IC Development Tools TPS62300-085 Eval Mod EVAL MODULE FOR TPS62300-085 |
| Category |
Business
| Product | Power Management Modules | Other Names | 296-18981 |
| Product Category | Power Management IC Development Tools | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | No | EU RoHS | RoHS Not Applicable |
Electrical
| Voltage Rating | 2.7 V to 6 V | Current - Output | 500mA, 500mA, 500mA, 500mA |
| Voltage - Supply | 1.5V, 1.5V, 1.6V, 1.8V | Regulator Topology | Buck |
| Current Rating (Max) | 500mA, 500mA, 500mA, 500mA | Frequency - Switching | 3MHz |
| Voltage - Input (Min) | 1.5V, 1.5V, 1.6V, 1.8V | ||
Mechanical
| Packaging | Reel | Board Thickness | Fully Populated |
| Size / Dimension | 62.4 mm x 48 mm | Supplier Device Package | Fully Populated |
Product Info
| Type | Development Kit | Contents | Board |
| Application | DC/DC, Step Down | Main Purpose | DC/DC, Step Down |
| Outputs and Type | 4, Non-Isolated | Tool Type Feature | TPS62300 |
| RF Family/Standard | TPS62300 | Utilized IC / Part | TPS62300, TPS62301, TPS62302 |
Documents & Media
Similar Parts

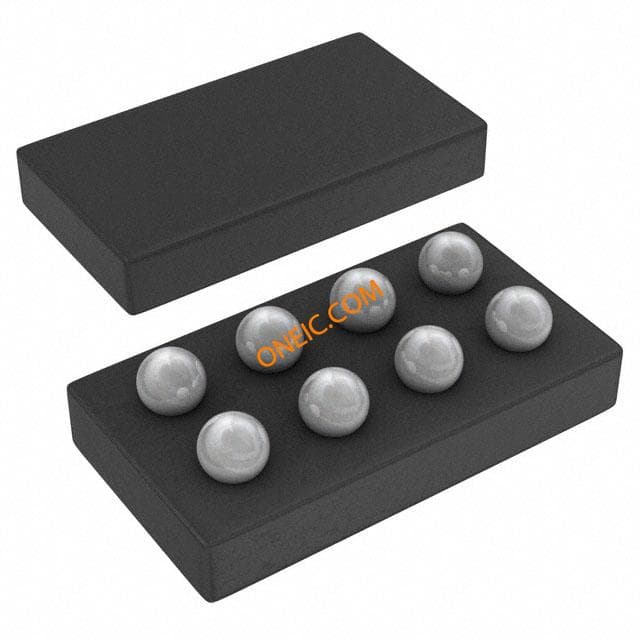

TPS62300YZDR
