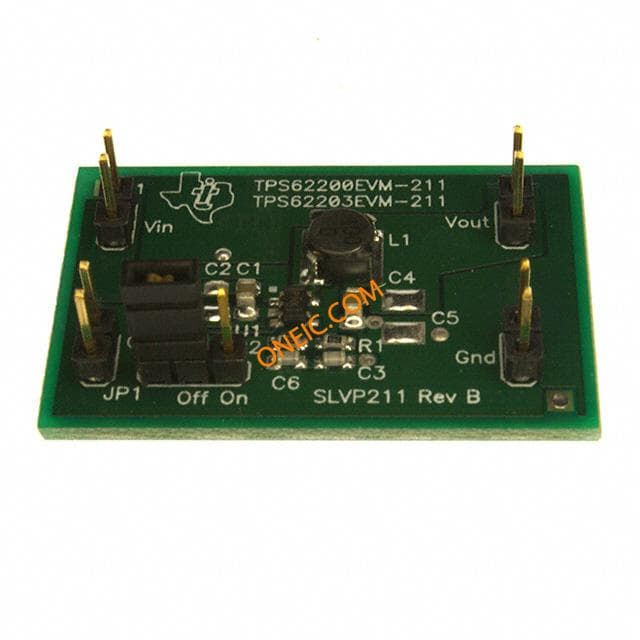

TPS62200DBVR
| Manufacturer | |
| Description | Conv DC-DC Single Step Down 2.5V to 6V 5-Pin SOT-23 T/R IC REG BUCK SYNC ADJ .3A SOT23-5 Voltage Regulators - Switching Regulators Adj 300mA Hi-Eff Step-Down Converter IC, SYNC STEP-DOWN DC/DC CONV, 5-SOT-23 Adjustable, 300-mA, 95% Efficient Step-Down Converter in SOT-23 Switching Voltage Regulators Adj 300mA Hi-Eff Step-Down Converter |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-12716-2 | Product Category | Voltage Regulators - Switching Regulators |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85423990 | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| Output | 1 | PWM Type | Voltage Mode |
| Duty Cycle | 100 | Efficiency | 95 % |
| Output Type | Adjustable | Voltage Rating | 0.7 to 6 V |
| Delay Time - ON | Fixed | Line Regulation | 0.26(Typ) %/V |
| Load Regulation | 0.0014(Typ) %/mA | Current - Output | 0.3 A |
| Voltage - Supply | 2.5 to 6 V | Number of Outputs | 1 |
| Regulator Topology | Step Down | Current - Switching | 0.67 |
| Switching Regulator | Yes | Current Rating (Max) | Catalog |
| Must Release Voltage | Fixed | Frequency - Switching | 1000(Typ) kHz |
| Synchronous Rectifier | Yes | Voltage - Input (Min) | 0.7 V ~ 6 V |
| Current - Quiescent (Iq) | 0.015 | DC Voltage - Input (Min) | 2.5 V |
| Voltage Regulation - Load | Internal | Accuracy - Voltmeter; Ammeter | 3 |
Mechanical
| Width | 1.6 mm | Weight | 0.002 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :5 | Package / Case | 5SOT-23 |
| Package Cooled | SOT-23 | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 3.05(Max) | Package Quantity | SOT-23 |
| Number of Positions | 5 | Shell Size - Insert | 1.3(Max) |
| Supplier Device Package | SOT-23-5 | ||
Product Info
| Type | Step Down | Series | TPS62200 |
| Features | Enable Light Load Efficiency Synchronous Rectification | Software | SLVS417F |
| Topology | Buck | Application | Consumer & Portable Electronics |
| Control Method | Voltage Mode | Functional Diagram | fbd_slvs417f.gif |
| Utilized IC / Part | View | Printed Circuit Board | 5 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
