TPS61500PWP
| Manufacturer | |
| Description | LED DRVR 4Segment 3.3V/5V/9V/12V/15V 14-Pin HTSSOP EP Tube LED Lighting Drivers High Brightness LED Driver IC LED DRVR HIGH BRIGHT 14-TSSOP TPS61500PWP, LED Driver 4-Segments, 3.3, 5, 9, 12, 15V, 14-Pin HTSSOP EP IC, LED DRIVER, BOOST, HTSSOP-14 HBLED DRIVER, W/ 3A, 40V SW, TSSOP14 High Brightness LED Driver with Integrated 3-A, 40-V Power Switch 4段 LED 驱动器, 3.3 V, 5 V, 9 V, 12 V, 15 V, 14引脚 HTSSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | LED Lighting Drivers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 90 | Standard Package Name | TSSOP |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| LED | 10 | Dimming | :PWM |
| Channels | 1 | Frequency | 200kHz ~ 2.2MHz |
| Duty Cycle | 93 | Efficiency | :93% |
| Display Type | :LED | Power - Rated | 3 W |
| Voltage Rating | 2.9 V to 18 V | Current - Output | :3A |
| Current - Supply | 3.8 A | Voltage - Supply | 2.9 to 18 V |
| Number of Outputs | 1 | Current Rating (Max) | Catalog |
| Frequency - Switching | :2.2MHz | Voltage - Input (Min) | 2.9 V ~ 38 V |
| Voltage - Supply (Min) | 2.9 V | Power Dissipation (Max) | 2250 mW |
| Current - Off State (Max) | 1.5 | Current - Output High, Low | 40(Typ) uA |
| Voltage - Continuous Operating (Max) (MCOV) | :18V | ||
Mechanical
| Width | 4.4mm | Height | 1.15mm |
| Length | 5mm | Weight | 0.002046 oz |
| Packaging | Tube | Case Color | :HTSSOP |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :14 | Package / Case | 14HTSSOP EP |
| Package Cooled | HTSSOP EP | Material Finish | :MSL 2 - 1 year |
| Length - Overall | 5.1(Max) | Package Quantity | HTSSOP EP |
| Size / Dimension | 5 x 4.4 x 1.15mm | Number of Positions | 14 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 14-HTSSOP |
Product Info
| Type | High Brightness LED (HBLED), White LED | Series | TPS61500 |
| DELETED | Compliant | Features | Synchronous Rectification |
| Software | SLVS893C | Topology | PWM, Step-Up (Boost) |
| Base Unit | :61500 | Functional Diagram | alt_slvs893c.gif |
| Number of Segments | 4 | Utilized IC / Part | View |
| Internal Connection | Yes | Digits or Characters | :4 |
| Application Specifics | :Backlighting | Printed Circuit Board | 14 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | + 85 C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
744728
Wurth Electronics
Inductor Kits & Accessories TI Design Kit DESIGN KIT INDUCTORS FOR TI Wurth Elektronik Power Inductor Inductor Design Kit, 176 Pieces DESIGN-KIT SMD-POWER CHOKES FOR TI Wurth Elektronik 176件 电感器套件, 套件包含功率电感器
$3.8250
Details

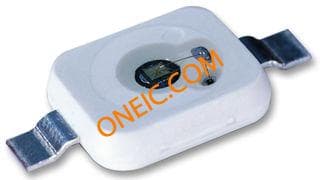

LRW5SN
osram opto semiconductor
LED, SMD, 4.6W, RED
$9.0600
Details
TPS61500EVM-369
texas instruments
Evaluation Module For TPS61500 LED Lighting Development Tools TPS61500EVM-369 Eval Mod EVAL MODULE FOR TPS61500-369 TPS61500, HB LED DRIVER, EVAL MODULE EVAL BOARD, TPS61500 3A LED DRIVER
$353.3400
Details
LRW5SN
OSRAM SYLVANIA
$40.8000
Details

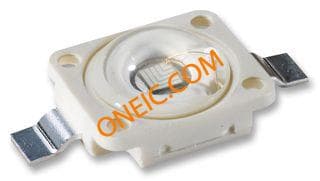

LUWW5AM-KYLX-6P7Q
