TPS61040QDBVRQ1
| Manufacturer | |
| Description | Conv DC-DC Single Step Up 1.8V to 6V 5-Pin SOT-23 T/R LED Lighting Drivers Auto Cat Low Pwr DC/DC Boost Cnvrtr IC LED DRVR WHITE BCKLGT SOT23-5 LED DRIVER, SOT23-5 Automotive Catalog Low Power 400-mA DC/DC Boost Converter Switching Voltage Regulators Auto Cat Low Pwr DC/DC Boost Cnvrtr |
| Category |
Business
| Other Names | 296-23425-1 | Product Category | LED Lighting Drivers |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | ||
Electrical
| Output | 1 | Dimming | :PWM |
| Frequency | 1MHz | Duty Cycle | 75 |
| Output Type | Adjustable | Power - Rated | 357 mW |
| Voltage Rating | 1.8 to 28 V | Line Regulation | 0.05(Typ) %/V |
| Load Regulation | 0.15(Typ) %/mA | Current - Output | 0.4 A |
| Current - Supply | 50 uA | Voltage - Supply | 1.8 to 6 V |
| Number of Outputs | 1 | Current - Switching | 0.325 |
| Switching Regulator | Yes | Current Rating (Max) | Automotive |
| Must Release Voltage | 1.5 | Frequency - Switching | 1000 kHz |
| Voltage - Input (Min) | 28V | Current - Quiescent (Iq) | 0.028 |
| Current - Off State (Max) | 0.1 | Voltage - Continuous Operating (Max) (MCOV) | :6V |
Mechanical
| Width | 1.75(Max) | Weight | 0.000459 oz |
| Packaging | Reel | Case Color | :SOT-23 |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :5 |
| Package / Case | 5SOT-23 | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 3.05(Max) | Package Quantity | SOT-23 |
| Number of Positions | 5 | Shell Size - Insert | 1.3(Max) |
| Supplier Device Package | SOT-23-5 | ||
Product Info
| Type | Step Up | Series | TPS61040-Q1 |
| Features | Enable | Software | SGLS276C |
| Topology | PWM, Step-Up (Boost) | Base Unit | :6104 |
| Functional Diagram | fbd_sgls276c.gif | Utilized IC / Part | View |
| Internal Connection | Yes | Application Specifics | :Cellular Phone, LCD Display Backlight |
| Printed Circuit Board | 5 | ||
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40 to 125 °C |
Documents & Media
Similar Parts
TPS61040DBVR
texas instruments
Conv DC-DC Single Step Up 1.8V to 6V 5-Pin SOT-23 T/R LED Lighting Drivers 28-V 400-mA Switch Boost Converter IC LED DRVR WHITE BCKLGT SOT23-5 BOOST, 1.8-6V, 0.4A, 28VMAX, 5SOT23 28-V, 400-mA Switch Boost Converter in SOT-23 for LCD and White LED Applications DC/DC Converter IC ≤ 28 VDC SOT-23-5, TPS61040, TPS61040DBVR, Texas Instruments Texas Instruments 直流-直流转换器, 升压, 550mA, 1.8 → 6 V输入, 1.8 → 28 V输出, 1 MHz, 5针 SOT-23封装 Switching Voltage Regulators 28-V 400-mA Switch Boost Converter
TPS61040EVM-002
texas instruments
Development Tools, Boost Converter Evaluation Module For White LED Supply Power Management IC Development Tools TPS61040 Boost Conv Eval Mod EVAL MOD FOR TPS61040 TPS61040EVM-002
TPS61040EVM-001
texas instruments
Evaluation Kit For Boost Converter Evaluation Module For LCD Supply, 18V/20mA Power Management IC Development Tools TPS61040 Boost Conv Eval Mod EVAL MOD FOR TPS61040 EVAL BOARD, TPS61040 ADJ 20mA STEP-UP REGULATOR
33205
Capital Advanced Technologies

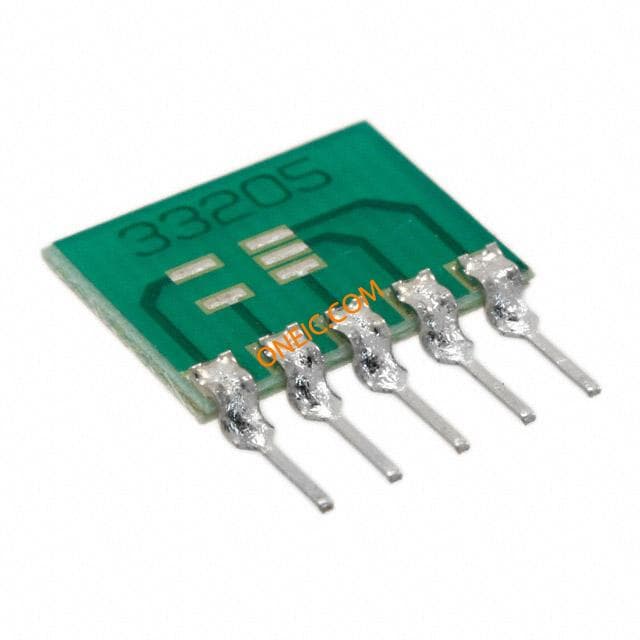

PROTO-BOARD ADAPTER FOR SOT-23-5
