TPS54620EVM-374
| Manufacturer | |
| Description | Regulator Evaluation Module Designed To Demonstrate The Small Printed-Circuit-Board Areas That May Be Achieved When Designing With The TPS54620 Regulator Power Management IC Development Tools 8-17V 6A SWIFT Converter Eval Mod EVAL MOD FOR TPS54620 TPS54620EVM-374 SWIFT Converter EVM TPS54620, STEP DOWN CONVERTER, EVAL MOD |
| Category |
Business
| Product | Power Management Modules | Product Category | Power Management IC Development Tools |
| Standard Package | Boxed | Factory Pack Quantity | 1 |
Compliance
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | RoHS Not Applicable | Tariff No | 84733020 |
Electrical
| Voltage Rating | 12 V | Current - Output | 6A |
| Number of Elements | :TPS54620 | Regulator Topology | Buck |
| Frequency - Switching | 480kHz | Voltage - Input (Min) | 3.3V |
Mechanical
| Weight | 0.25 | Size, Supplied | Texas Instruments |
| Board Thickness | Fully Populated | Size / Dimension | 63.5 mm x 63.5 mm |
Product Info
| Type | Development Kit | Contents | Board |
| Features | :(Not Applicable) | Kit Type | :Power Management |
| Architecture | Analog | Kit Contents | :Eval Module TPS54620, User Guide |
| Main Purpose | DC/DC, Step Down | Outputs and Type | 1, Non-Isolated |
| Tool Type Feature | TPS54620 | Utilized IC / Part | TPS54620 |
| Chipset Manufacturer | :Texas Instruments | Application Specifics | :Synchronous Step Down Converter |
Documents & Media
Similar Parts

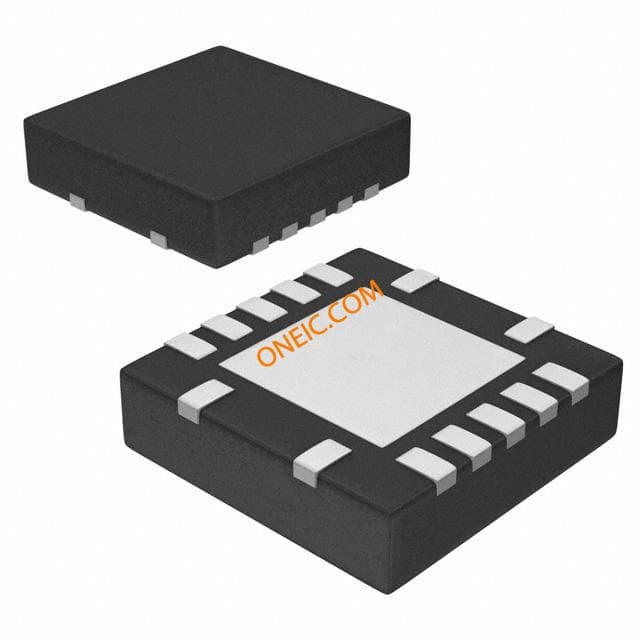

TPS54620RGYR
