TPS54614QPWPRQ1
| Manufacturer | |
| Description | Conv DC-DC Single Step Down 3V to 6V 28-Pin HTSSOP EP T/R IC REG BUCK SYNC 1.8V 28HTSSOP Voltage Regulators - Switching Regulators 3V-6Vin 6A Out Synch Buck PWM Switcher Automotive Catalog 3-V to 6-V Input 6-A Output Sync Buck PWM Switcher Switching Voltage Regulators 3V-6Vin 6A Out Synch Buck PWM Switcher |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Voltage Regulators | Other Names | 296-21679-2 |
| Product Category | Voltage Regulators - Switching Regulators | Standard Package | Tape & Reel |
| Factory Pack Quantity | 2000 | Standard Package Name | TSSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Qualification | AEC-Q100 |
Electrical
| Output | 1 | PWM Type | Voltage Mode |
| Duty Cycle | 90 | Output Type | Fixed |
| Voltage Rating | 1.8 V | Delay Time - ON | Adjustable |
| Line Regulation | 0.088(Typ) %/V | Load Regulation | 0.0917(Typ) %/A |
| Current - Output | 6 A | Current - Supply | 15 mA |
| Voltage - Supply | 3 to 6 V | Number of Outputs | 1 |
| Voltage - Output 4 | 1.8 | Current - Switching | 7.2 |
| Switching Regulator | Yes | Current Rating (Max) | Automotive |
| Must Release Voltage | Fixed | Frequency - Switching | 440|680|252 to 762 kHz |
| Synchronous Rectifier | Yes | Voltage - Input (Min) | 1.8V |
| Current - Quiescent (Iq) | 15 | Voltage Regulation - Load | Internal |
| Accuracy - Voltmeter; Ammeter | 1 | Common Mode Transient Immunity (Min) | Automotive |
Mechanical
| Width | 4.5(Max) | Weight | 0.004180 oz |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 28HTSSOP EP | Length - Overall | 9.8(Max) |
| Package Quantity | HTSSOP EP | Number of Positions | 28 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 28-HTSSOP |
Product Info
| Type | Step Down | Series | TPS54614-Q1 |
| Features | Enable Power Good Synchronous Rectification | Software | SGLS266G |
| Topology | Buck | Application | Automotive & Transportation |
| Manufacturer | SWIFT | Control Method | Voltage Mode |
| Utilized IC / Part | View | Printed Circuit Board | 28 |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40 to 125 °C |
Documents & Media
PDF Document
Similar Parts

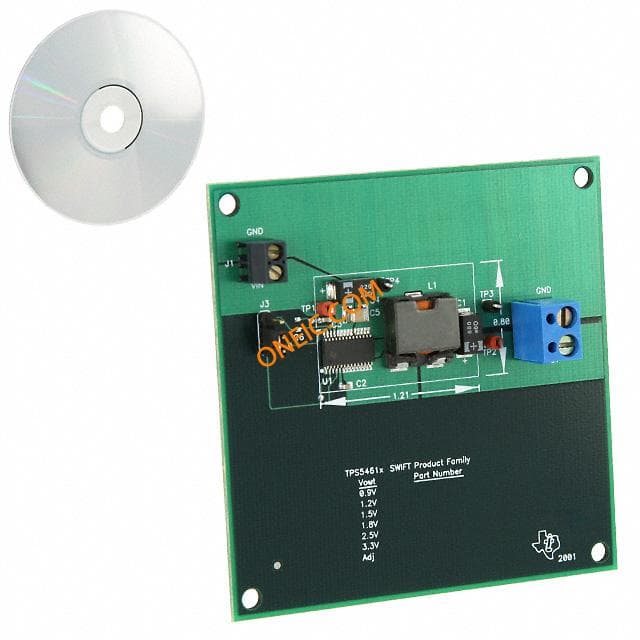

TPS54614EVM-183
