TPS54325EVM
| Manufacturer | |
| Description | Evaluation Board For 4.5-V To 18-V, 3-A Output Synchronous Step Down Switcher With Integrated FET Power Management IC Development Tools 5-17V Input 3A SWIFT CVTR Eval EVAL MODULE FOR TPS54325 TPS54325EVM EVALUATION MODULE EVAL BOARD, TPS54325, 3A SYS STEP-DOWN REG |
| Category |
Business
| Product | Power Management Modules | Product Category | Power Management IC Development Tools |
| Standard Package | Boxed | Factory Pack Quantity | 1 |
Compliance
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 84733020 | ||
Electrical
| Voltage Rating | 4.5 V to 18 V | Current - Output | 3A |
| Number of Elements | :TPS54325 | Regulator Topology | Buck |
| Frequency - Switching | 700kHz | Voltage - Input (Min) | 1.05V |
Mechanical
| Weight | 1 | Board Thickness | Fully Populated |
Product Info
| Type | Development Kit | Contents | Board |
| Features | :- | Kit Type | :Power Management |
| Kit Contents | :Evaluation Board for TPS54325 | Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated | Tool Type Feature | TPS54325 |
| RF Family/Standard | TPS54325 | Utilized IC / Part | TPS54325 |
| Chipset Manufacturer | :Texas Instruments | Application Specifics | :Synchronous Buck Regulator |
Documents & Media
Similar Parts

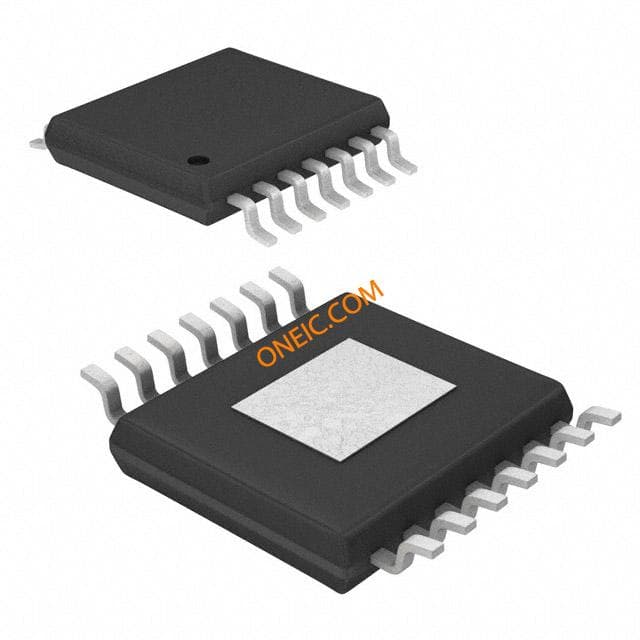

TPS54325PWPR
texas instruments
Conv DC-DC Single Step Down 2V to 18V 14-Pin HTSSOP EP T/R IC REG BUCK SYNC ADJ 3A 14HTSSOP Voltage Regulators - Switching Regulators 4.5-18Vin 3A Synch St-Down SWIFT Cnvrtr 4.5V to 18V Input, 3A Synchronous Step-Down SWIFT™ Converter Switching Voltage Regulators 4.5-18Vin 3A Synch St-Down SWIFT Cnvrtr
TPS54325TPWPRQ1
texas instruments
Conv DC-DC Single Step Down 2V to 18V 14-Pin HTSSOP EP T/R IC REG BUCK SYNC ADJ 3A 14HTSSOP Voltage Regulators - Switching Regulators 4.5V-18Vin,3A Sync Step-Down DCAP2 Mode Automotive Catalog 4.5V to 18V Input, 3A Synchronous Step Down DCAP2 Mode Converter Switching Voltage Regulators 4.5V-18Vin,3A Sync Step-Down DCAP2 Mode
TPS54325PWP
texas instruments
Conv DC-DC Single Step Down 2V to 18V 14-Pin HTSSOP EP Tube IC REG BUCK SYNC ADJ 3A 14HTSSOP Voltage Regulators - Switching Regulators 4.5-18Vin 3A Synch St-Down SWIFT Cnvrtr STEP DOWN CONV, 4.5 TO 18V, 14TSSOP IC, SYNC STEP-DOWN CONVERTER, 14-HTSSOP 4.5V to 18V Input, 3A Synchronous Step-Down SWIFT™ Converter DC/DC Converter IC 0.76...5.5 V HTSSOP-14, TPS54325PWP, Texas Instruments Texas Instruments 降压 开关稳压器, 3A, 可调输出, 0.76 → 5.5 V, 700 kHz, 14针 HTSSOP封装 Switching Voltage Regulators 4.5-18Vin 3A Synch St-Down SWIFT Cnvrtr
