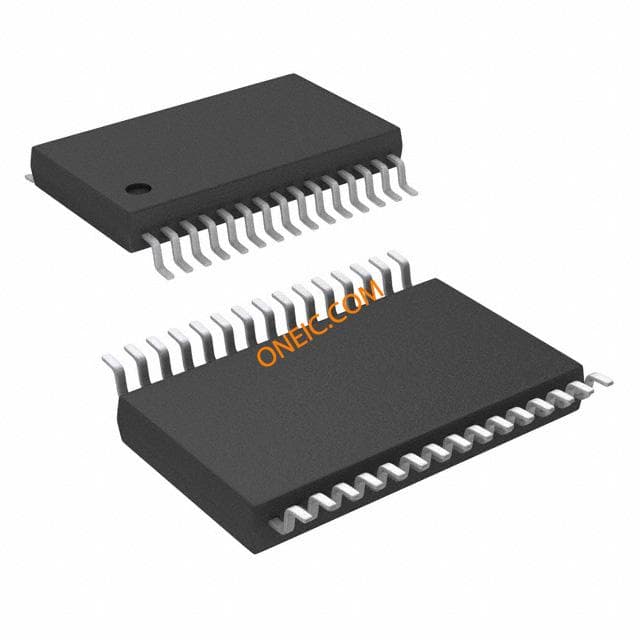

TPS5120DBTG4
| Manufacturer | |
| Description | DC DC Cntrlr Dual-OUT Synchronous Buck Controller/PWM DC to DC Controller 4.5V to 28V Input 30-Pin TSSOP Tube IC REG CTRLR BUCK PWM 30-TSSOP Switching Controllers Dual Output 2Phase Synch Buck Cntrlr BUCK CONTROLLER DUAL SYNC, TSSOP30 Dual Output, Two-Phase Synchronous Buck Controller with Wide Input Voltage Range |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Switching Controllers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 60 | Standard Package Name | TSSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Output | 2 | PWM Type | Controller |
| Frequency | :300kHz | Duty Cycle | 83% |
| Cuk Converter | No | Buck Converter | Yes |
| Isolated Power | No | Voltage Rating | 0.9 to 24 V |
| Boost Converter | No | Frequency - Max | 500kHz |
| Current - Output | 20(Max)|20(Max) A | Voltage - Supply | 4.5 to 28 V |
| Doubler Converter | No | Flyback Converter | No |
| Number of Outputs | 2 | Current - Output 2 | 15 |
| Divider/Multiplier | No | Inverting Converter | No |
| Current Rating (Max) | Catalog | Frequency - Switching | 500 |
| Voltage - Input (Min) | :28V | Voltage - Output (Max) | :26V |
| Current - Quiescent (Iq) | 1.1 | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 4.5(Max) | Weight | 0.003439 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :30 |
| Package / Case | 30TSSOP | Package Cooled | TSSOP |
| Material Finish | :MSL 2 - 1 year | Length - Overall | 7.9(Max) |
| Package Quantity | TSSOP | Number of Positions | 30 |
| Shell Size - Insert | 1.05(Max) | ||
Product Info
| Type | Synchronous Buck Controller/PWM DC to DC Controller | Series | TPS5120 |
| Features | Enable Light Load Efficiency Power Good Phase Interleaving Synchronous Rectification | Software | SLVS278E |
| Topology | Buck | Base Unit | :5120 |
| Application | Mobile Computing | Control Method | Voltage Mode |
| Controller Type | :PWM | Utilized IC / Part | View |
| Printed Circuit Board | 30 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
