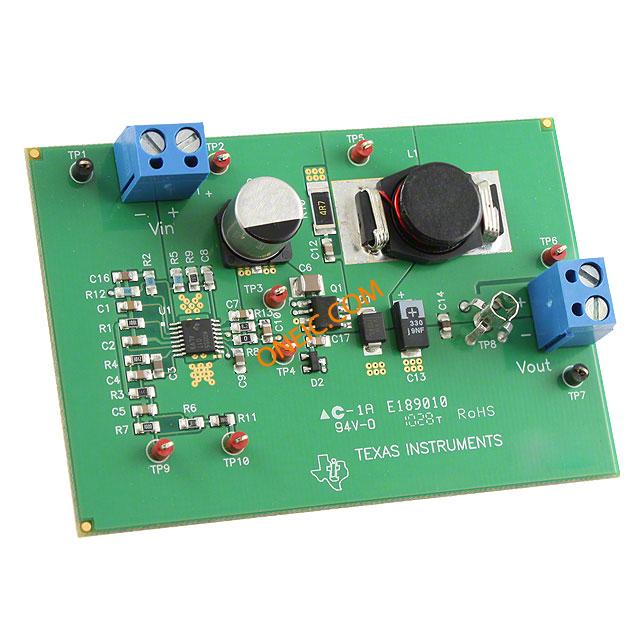

TPS40055EVM-002
| Manufacturer | |
| Description | Evaluation Module For Wide Range Input DC To DC Converter Uses The Tps40055 Synchronous Rectifier Controller Power Management IC Development Tools Wide Input Range Converter EVAL MODULE FOR TPS40055-002 |
| Category |
Business
| Product | Power Management Modules | Product Category | Power Management IC Development Tools |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | No | ||
Electrical
| Voltage Rating | 10 V to 40 V | Current - Output | 3A |
| Regulator Topology | Buck | Frequency - Switching | 300kHz |
| Voltage - Input (Min) | 5V | ||
Mechanical
| Board Thickness | Fully Populated | Size / Dimension | 82.6 mm x 57.2 mm |
Product Info
| Type | Development Kit | Contents | Board |
| Main Purpose | DC/DC, Step Down | Outputs and Type | 1, Non-Isolated |
| Tool Type Feature | TPS40055 | Utilized IC / Part | TPS40055 |
