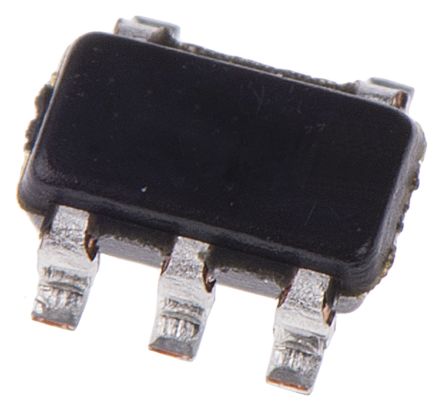

TPS3836L30DBVT
| Manufacturer | |
| Description | Processor Supervisor 2.64V 1.6V to 6V 5-Pin SOT-23 T/R IC 2.64V NANOPWR MON SOT-23-5 TPS3836L30DBVT, Processor Supervisor 1.6 to 6V Active Low, Push-Pull, Reset 5-Pin SOT-23 Supervisory Circuits 220nA w/ 10ms/200ms Select delay time 220nA Supervisor with 10ms/200ms selectable delay time 处理器监控器, 1.6 至 6 V监控电压, 多种输出驱动, 复位功能, 5针 SOT-23封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-3342-2 | Product Category | Supervisory Circuits |
| Standard Package | Tape & Reel | Factory Pack Quantity | 250 |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Reset | Yes | Output | Active Low/Push-Pull |
| Vgs (Max) | 2.69 V | Delay Time | 10 200 |
| Reset Time | 300 ms | Output Type | Push-Pull |
| Input Signal | No | Power - Rated | 0.437 W |
| Voltage Rating | 3 V | Watchdog Timer | No |
| Output Function | Active-low Push-pull | Current - Output | 0.015 mA |
| Current - Supply | 15 uA | Number of Inputs | 1 Input |
| Voltage - Supply | 1.6 to 6 V | Number of Elements | 1 |
| Voltage - Clamping | 2.64 V | Voltage - Threshold | 2.64V |
| Voltage - Input (Min) | 2.56 V | Voltage - Output (Max) | 2.85V |
| Voltage - Supply (Min) | 6 V | Power - Average Forward | 437 mW |
| Power Dissipation (Max) | 437 mW | Power - Minimum Receivable | No |
| Number of Voltages Monitored | 1 | Voltage - Input Offset (Max) | 1.6 to 6 V |
| Common Mode Transient Immunity (Min) | Industrial | Voltage - Protection Level (VP) (2416) | 6V |
Mechanical
| Width | 1.6mm | Height | 1.15mm |
| Length | 2.9mm | Weight | 0.000459 oz |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Reset Force | 是 | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 5 |
| Package / Case | 5SOT-23 | Package Cooled | SOT-23 |
| Length - Overall | 3.05(Max) | Package Quantity | SOT-23 |
| Size / Dimension | 2.9 x 1.6 x 1.15mm | Number of Positions | 5 |
| Shell Size - Insert | 1.3(Max) | Supplier Device Package | SOT-23-5 |
Product Info
| Type | Simple Reset/Power-On Reset | Series | TPS3836L30 |
| DELETED | Compliant | Features | Manual Reset |
| Software | SLVS292E | Manufacturer | Texas Instruments |
| Reset Timeout | 100 ms Minimum | Battery Series | No |
| RF Family/Standard | TPS3836 | Utilized IC / Part | View |
| Number of Supervisors | 1 | Printed Circuit Board | 5 |
| Number of Monitor Fields | 1 | Number of Positions Loaded | 1 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
