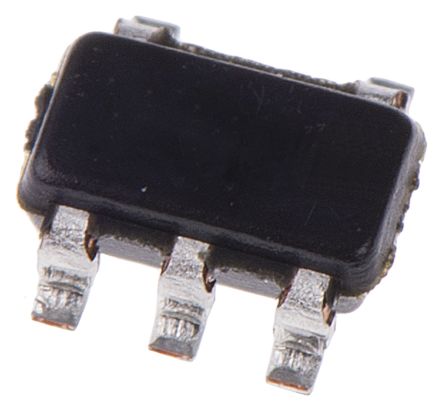

TPS3836J25DBVT
| Manufacturer | |
| Description | Processor Supervisor 2.25V 1.6V to 6V 5-Pin SOT-23 T/R IC 2.25V LOW CURRENT MONSOT-23-5 Supervisory Circuits 220nA w/ 10ms/200ms Select delay time SUPERVISORY CIRCUIT, 3836, SOT-23-5 220nA Supervisor with 10ms/200ms selectable delay time 处理器监控器, 1.6 至 6 V监控电压, 多种输出驱动, 复位功能, 5针 SOT-23封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-3340-2 | Product Category | Supervisory Circuits |
| Standard Package | Cut Tape, Tape & Reel | Factory Pack Quantity | 250 |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | :3836 | Rad Hardened | No |
Electrical
| Reset | Yes | Output | Active Low/Push-Pull |
| Vgs (Max) | 2.29 V | Delay Time | :200ms |
| Reset Time | 300 ms | Output Type | Push-Pull |
| Input Signal | No | Power - Rated | 0.437 W |
| Voltage Rating | 2.5 V | Watchdog Timer | No |
| Output Function | Active-low Push-pull | Current - Output | 0.015 mA |
| Current - Supply | 15 uA | Voltage - Supply | 1.6 to 6 V |
| Number of Elements | 1 | Voltage - Clamping | 2.25 V |
| Voltage - Threshold | 2.25V | Voltage - Input (Min) | 2.18 V |
| Voltage - Supply (Min) | 6 V | Power Dissipation (Max) | 437 mW |
| Power - Minimum Receivable | No | Number of Voltages Monitored | 1 |
| Voltage - Input Offset (Max) | 1.6 to 6 V | Common Mode Transient Immunity (Min) | Industrial |
| Voltage - Protection Level (VP) (2416) | 2.25 | ||
Mechanical
| Width | 1.75(Max) | Weight | 0.000459 oz |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :5 |
| Package / Case | 5SOT-23 | Package Cooled | SOT-23 |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 3.05(Max) |
| Package Quantity | SOT-23 | Number of Positions | 5 |
| Shell Size - Insert | 1.3(Max) | Supplier Device Package | SOT-23-5 |
Product Info
| Type | Simple Reset/Power-On Reset | Series | TPS3836J25 |
| DELETED | Compliant | Features | Manual Reset |
| Software | SLVS292E | Base Unit | :3836 |
| Reset Timeout | 100 ms Minimum | Battery Series | No |
| RF Family/Standard | TPS3836 | Utilized IC / Part | View |
| Number of Supervisors | 1 | Printed Circuit Board | 5 |
| Number of Positions Loaded | 1 | Number of Logic Elements/Cells | :1 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
