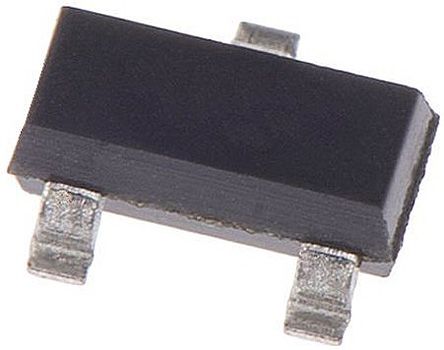

TPS3809I50DBVR
| Manufacturer | |
| Description | Volt Supervisor Supply 2.5V/3V/3.3V/5V 3-Pin SOT-23 T/R Processor Supervisor 4.55V 2.5V/3V/3.3V/5V 3-Pin SOT-23 T/R IC 4.55V SUPPLY MONITOR SOT-23-3 Supervisory Circuits 4.55V Volt. Sup 3-Pin Supply Voltage Supervisor Texas Instruments 电压监控器, 4.45V, 3针 SOT-23封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-10914-2 | Product Category | Supervisory Circuits |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Reset | Active Low | Output | Push-Pull, Totem Pole |
| Delay Time | 200 | Reset Time | 200 ms |
| Output Type | Active Low, Push-Pull | Input Signal | No |
| Power - Rated | 0.437 W | Voltage Rating | 5 V |
| Watchdog Timer | No | Output Function | Active-low Push-pull |
| Current - Output | 0.025 mA | Current - Supply | 25 uA |
| Number of Inputs | 1 Input | Voltage - Supply | 6 V |
| Number of Elements | 1 | Voltage - Clamping | 4.45 V |
| Voltage - Threshold | 4.55V | Voltage - Input (Min) | 4.45 V |
| Voltage - Supply (Min) | 6 V | Power - Average Forward | 437 mW |
| Power Dissipation (Max) | 437 mW | Power - Minimum Receivable | No |
| Number of Voltages Monitored | 1 | Voltage - Input Offset (Max) | 2.5/3/3.3/5 V |
Mechanical
| Width | 1.6mm | Height | 1.15mm |
| Length | 2.9mm | Weight | 0.000430 oz |
| Packaging | Tape & Reel (TR) | Lead Style | Gull-wing |
| Reset Force | Active Low | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 3 |
| Package / Case | 3SOT-23 | Package Cooled | SOT-23 |
| Length - Overall | 3(Max) | Package Quantity | SOT-23 |
| Size / Dimension | 2.9 x 1.6 x 1.15mm | Number of Positions | 3 |
| Shell Size - Insert | 1.3(Max) | Supplier Device Package | SOT-23-3 |
Product Info
| Type | Supply Voltage Supervisory | Series | TPS3809I50 |
| Software | SLVS228C | Manufacturer | Texas Instruments |
| Programmable | Yes | Reset Timeout | 120 ms Minimum |
| Battery Series | No Backup | Functional Diagram | alt_slvs228c.gif |
| Utilized IC / Part | View | Number of Supervisors | 1 |
| Printed Circuit Board | 3 | Number of Monitor Fields | 1 |
| Number of Positions Loaded | 1 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
