TPS3803-01MDCKREP
| Manufacturer | |
| Description | Volt Supervisor Detect 0V to 6.3V 5-Pin SC-70 T/R IC VOLT DETECTOR ADJ/1.5V SC70-5 Supervisory Circuits Mil Enhance Sgl Vltg Detector Enhanced Product Single Voltage Detector |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-18151-1 | Product Category | Supervisory Circuits |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
| Standard Package Name | SOT-323 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
| High Reliability | Y | ||
Electrical
| Reset | No | Output | Active Low/Open Drain |
| Accuracy | +/- 1.5 % | Delay Time | 0 |
| Reset Time | 5.5 us | Output Type | Open Drain |
| Power - Rated | 0.321 W | Voltage Rating | 1.3 V |
| Watchdog Timer | No | Output Function | Active-low Open-drain |
| Current - Supply | 4 uA | Number of Inputs | 1 Input |
| Voltage - Supply | 6 V | Voltage - Clamping | Adjustable |
| Voltage - Threshold | Adjustable/Selectable | Voltage - Input (Min) | Adj|1.4775 V |
| Voltage - Supply (Min) | 6 V | Power Dissipation (Max) | 321 mW |
| Voltage - Supply, Digital | Voltage Detector | Number of Voltages Monitored | 1 |
| Common Mode Transient Immunity (Min) | Military | Voltage - Protection Level (VP) (2416) | Adj|1.5 |
Mechanical
| Width | 1.4(Max) | Weight | 0.000088 oz |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Reset Force | Active Low | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 5SC-70 |
| Package Cooled | SC-70 | Length - Overall | 2.15(Max) |
| Package Quantity | SC-70 | Number of Positions | 5 |
| Shell Size - Insert | 1(Max) | Supplier Device Package | SC-70-5 |
Product Info
| Type | Voltage Detector | Series | TPS3803-01-EP |
| Software | SGLS227C | Manufacturer | Texas Instruments |
| Programmable | Yes | Reset Timeout | 5 µs Typical Propagation Delay |
| Battery Series | No Backup | Utilized IC / Part | View |
| DigiKey Programmable | Yes | Number of Supervisors | 1 |
| Printed Circuit Board | 5 | Number of Positions Loaded | 1 |
Environmental
| Temperature - Test | -55 to 125 | Operating Temperature | -55 to 125 °C |
Documents & Media
PDF Document
PDF Document
Similar Parts
33006
Capital Advanced Technologies

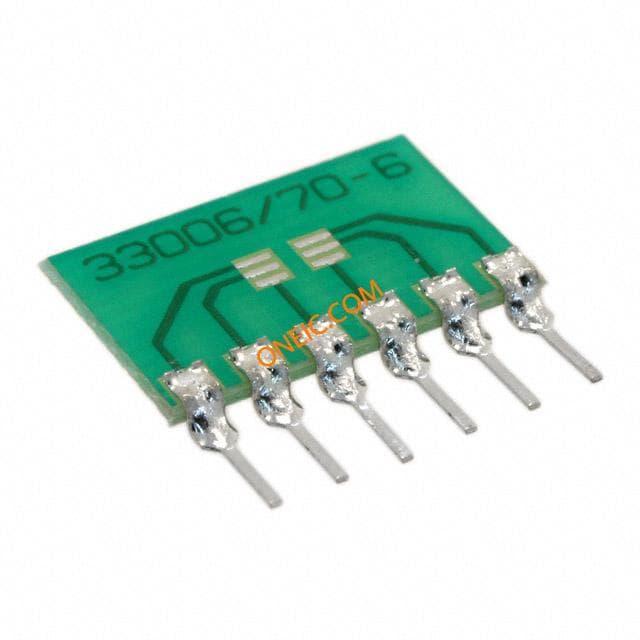

PROTO-BOARD ADAPTER FOR SOT-363
$9.1528
Details
33006
Wiha Tools

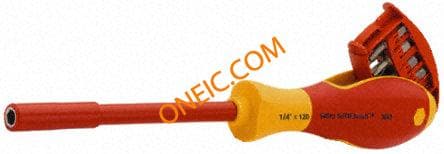

Magaz. Bit Holder Insul. 8pcs.
