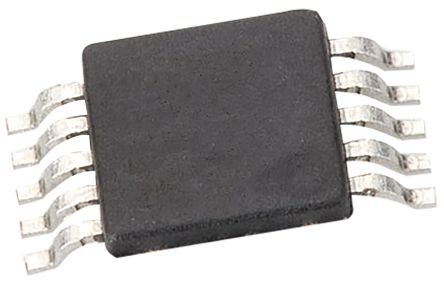

TPS3613-01DGS
| Manufacturer | |
| Description | Processor Supervisor 1.15V 0V to 5.8V 10-Pin VSSOP Tube IC BATT BACKUP SUPERVISR 10-MSOP Supervisory Circuits Adj Battery-Backup for RAM Retention SUPERVISOR, 40UA, 5.5V, MSOP-10 Adjustable Battery-Backup Supervisor for RAM Retention 处理器监控器, 0 至 5.8 V监控电压, 多种输出驱动, 复位功能, 10针 MSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Supervisory Circuits | Standard Package | Rail / Tube |
| Factory Pack Quantity | 80 | Standard Package Name | SSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Reset | Yes | Output | Active High/Active Low |
| Vgs (Max) | 1.17 V | Delay Time | :100ms |
| Reset Time | 140 ms | Output Type | Push-Pull |
| Input Signal | Yes | Power - Rated | 0.424 W |
| Voltage Rating | 1.65 V | Watchdog Timer | No |
| Output Function | Active-low Push-pull | Current - Output | 0.04 mA |
| Current - Supply | 40 uA | Voltage - Supply | 0 to 5.8 V |
| Number of Elements | 1 | Voltage - Clamping | Adjustable |
| Voltage - Threshold | Adjustable/Selectable | Voltage - Input (Min) | 1.13 V |
| Voltage - Supply (Min) | 5.5 V | Power Dissipation (Max) | 424 mW |
| Power - Minimum Receivable | No | Number of Voltages Monitored | 1 |
| Voltage - Input Offset (Max) | 0 to 5.8 V | Common Mode Transient Immunity (Min) | Industrial |
| Voltage - Protection Level (VP) (2416) | 1.15 | ||
Mechanical
| Width | 3.1(Max) | Weight | 0.000663 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :10 | Package / Case | 10VSSOP |
| Package Cooled | VSSOP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 3.1(Max) | Package Quantity | VSSOP |
| Number of Positions | 10 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 10-VSSOP | ||
Product Info
| Type | Battery Backup Circuit | Series | TPS3613-01 |
| DELETED | Compliant | Features | Battery Backup Switchover Chip Enable Gating |
| Software | SLVS340D | Reset Timeout | 60 ms Minimum |
| Battery Series | Yes | RF Family/Standard | TPS3613-01 |
| Utilized IC / Part | View | Number of Supervisors | 1 |
| Printed Circuit Board | 10 | Number of Positions Loaded | 1 |
| Number of Logic Elements/Cells | :1 | ||
