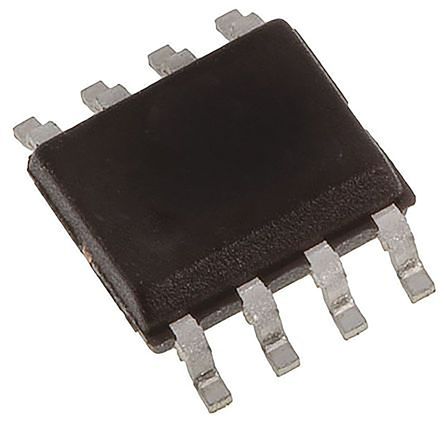

+TPS3306-15D
| Manufacturer | |
| Description | Processor Supervisor 2.93V/1.4V 1.5V/3.3V 8-Pin SOIC Tube IC 3.3/1.5V DUAL MONITOR 8-SOIC TPS3306-15D, Processor Supervisor 2-channel 1.5, 3.3V Active Low, Open Drain, 8-Pin SOIC Supervisory Circuits Dual-Processor with Power-Fail SUPERVISORY CIRCUIT TRIPLE, 3306 Dual-Processor Supervisory Circuits with Power-Fail , 2通道 处理器监控器, 1.5 V, 3.3 V监控电压, 多种输出驱动, 8针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Supervisory Circuits | Standard Package | Rail / Tube |
| Factory Pack Quantity | 75 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | :3306 | Rad Hardened | No |
Electrical
| Reset | No | Output | Active Low|Open Drain |
| Delay Time | :100ms | Reset Time | 140 ms |
| Output Type | Open Collector / Drain | Input Signal | No |
| Power - Rated | 0.725 W | Voltage Rating | 2.7 V |
| Watchdog Timer | Yes | Output Function | Active-low Open-drain |
| Current - Output | 0.04 mA | Current - Supply | 40 uA |
| Voltage - Supply | 1.5|3.3 V | Number of Elements | 2 |
| Voltage - Clamping | 1.4 V, 2.93 V | Voltage - Threshold | 1.4V, 2.93V |
| Voltage - Supply (Min) | 6 V | Power Dissipation (Max) | 725 mW |
| Power - Minimum Receivable | Yes | Number of Voltages Monitored | 2 |
| Voltage - Input Offset (Max) | 1.5/3.3 V | Common Mode Transient Immunity (Min) | Industrial |
| Voltage - Protection Level (VP) (2416) | 2.93|1.4 | ||
Mechanical
| Width | 3.91mm | Height | 1.58mm |
| Length | 4.9mm | Weight | 0.002677 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8SOIC | Package Cooled | SOIC |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 5(Max) |
| Package Quantity | SOIC | Size / Dimension | 4.9 x 3.91 x 1.58mm |
| Number of Positions | 8 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 8-SOIC | ||
Product Info
| Type | Multi-Voltage Supervisor | Series | TPS3306-15 |
| DELETED | Compliant | Features | Watchdog Timer |
| Software | SLVS290C | Base Unit | :3306 |
| Reset Timeout | 70 ms Minimum | Battery Series | Yes |
| RF Family/Standard | TPS3306-15 | Utilized IC / Part | View |
| Number of Supervisors | 2 | Printed Circuit Board | 8 |
| Number of Positions Loaded | 2 | Number of Logic Elements/Cells | :2 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
