TPS2560DRCT
| Manufacturer | |
| Description | USB Power SW USB HUB Power Controllers Dual 6.5V 2.8A 10-Pin VSON EP T/R Power Switch ICs - USB Dual Ch Prec Adj Current-Ltd Pwr Sw IC POWER DIST SWITCH ADJ 10SON IC, CURRENT LIMITED POWER SW 6.5V SON-10 IC, POWER DIST SWITCH, ADJ, 10SON Dual Channel Precision Adjustable Current-Limited Power Switches Texas Instruments , 2输出 负载开关集成电路, 2.5A, 2.5 to 6.5V, 2.403W, 10针 SON封装 Power Switch ICs - Power Distribution Dual Ch Prec Adj Current-Ltd Pwr Sw |
| Category |
Business
| Other Names | 296-25547-2 | Product Category | Power Switch ICs - USB |
| Standard Package | Tape & Reel | Factory Pack Quantity | 250 |
| Standard Package Name | SON | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Turn On Time | 9 ms | Current - Test | 2.5 |
| Voltage Rating | :6.5V | Current - Output | 2.5 A |
| Voltage - Supply | - 0.3 V | Number of Outputs | 2 |
| Regulator Topology | Constant-Current | Current Rating (Max) | Catalog |
| Voltage - Input (Min) | 2.5 to 6.5 V | Rds On (Max) @ Id, Vgs | 50 mOhm |
| Power Dissipation (Max) | :2.403W | Input Logic Level - High | :Active Low |
| On-State Resistance (Max) | 50 mOhms | Accuracy - Voltmeter; Ammeter | +/-7.5% (2590mA min / 3005mA max) |
| Current - Short Circuit (Isc) | 2.8 A | Switch Time (Ton, Toff) (Max) | 6 ms |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 3.1(Max) | Weight | 0 |
| Packaging | Reel | Lead Style | No Lead |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :10 | Package / Case | 10VSON EP |
| Package Cooled | VSON EP | Material Finish | :MSL 2 - 1 year |
| Length - Overall | 3.1(Max) | Package Quantity | VSON EP |
| Number of Positions | 10 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 10-SON (3x3) | ||
Product Info
| Type | USB HUB Power Controllers | Series | TPS2560 |
| DELETED | Compliant | Software | SLVS930A |
| Base Unit | :2560 | Switch Type | :High Side |
| Programmable | Active Low | Pattern Number | Y |
| Functional Diagram | alt_slvs930a.gif | Internal Switch(s) | Yes |
| Number of Switches | 2 | Utilized IC / Part | View |
| Printed Circuit Board | 10 | ||
Environmental
| Temperature - Test | -40 to 85 | Thermal Resistance | :Yes |
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
Similar Parts
TPD2EUSB30DRTR
texas instruments
ESD Suppressor Diode Arrays ±8KV 3-Pin SOT T/R ESD Suppressors 2Ch ESD Solution TVS DIODE 5.5VWM 8VC SOT3 ESD Suppressor Diode Arrays �8KV 3-Pin SOT T/R ESD PROTECTION ARRAY, 2CH, SOT-3 IC, INTERFACE, SOT 2-Channel ESD Solution for SuperSpeed USB 3.0 Interface TVS diode SOT-23-3, TPD2EUSB30, TPD2EUSB30DRTR, Texas Instruments Texas Instruments 双向 TVS 二极管阵列, 45W, 8V, 3针 SOT封装 ESD Suppressors / TVS Diodes 2Ch ESD Solution
TUSB7340EVM
texas instruments
Evaluation Module For USB 3.0 XHCI 0.96 Compliant Host Controller Interface Development Tools 4-port SuperSpd USB xHCI PCIe Card Ref BOARD REF DESIGN FOR TUSB7340 TUSB7340, HOST CONTROLLER, EVAL MODULE EVAL BOARD, TUSB7340 USB INTERFACE
TUSB7320EVM
texas instruments
Two-Port Super Speed USB XHCI PCIE Card Reference Design Interface Development Tools 2-port SuperSpd USB xHCI PCIe Card Ref BOARD REF DESIGN FOR TUSB7320 TUSB7320EVM EVALUATION MODULE EVAL BOARD, TUSB7320 USB INTERFACE

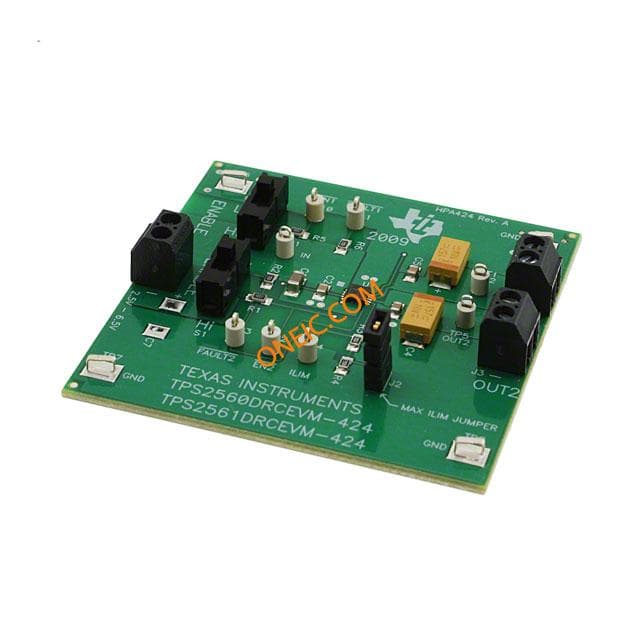

TPS2560DRCEVM-424
