TPS2490DGSR
| Manufacturer | |
| Description | Hot Swap Controller 1-CH 80V 10-Pin VSSOP T/R IC POS HV HOT-SWAP CTRLR 10-MSOP Hot Swap Voltage Controllers Latchbl Pos Hi-Vltg Pwr-Limiting Latchable Positive High-Voltage Power-Limiting Hot Swap Controller |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Controllers & Switches | Other Names | 296-26924-1 |
| Product Category | Hot Swap Voltage Controllers | Standard Package | Tape & Reel |
| Factory Pack Quantity | 2500 | Standard Package Name | SSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
| Fault Protection | Latched Off | ||
Electrical
| Accuracy | - | External FET | N-Channel |
| Voltage Rating | 9 V | Current - Output | 1mA |
| Voltage - Supply | 9 V ~ 80 V | Number of Channels | 1 |
| Current - Trip (It) | 50 | Voltage - Breakdown | SOA |
| Current Rating (Max) | Catalog | Voltage - Supply (Min) | 80 V |
| External Sense Resistor | Yes | Input Logic Level - High | EN |
| Current Regulation - Load | 50 mV +/- 10% | Common Mode Transient Immunity (Min) | Industrial |
| Voltage - Protection Level (VP) (2416) | 100 | ||
Mechanical
| Depth | 3 mm | Width | 3.1(Max) |
| Height | 1.02 mm | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Package Cooled | MSOP | Length - Overall | 3 mm |
| Package Quantity | VSSOP | Number of Contacts | EN, PG, PROG, TIMER |
| Number of Positions | 10 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 10-VSSOP | ||
Product Info
| Type | Positive High Voltage | Design | Calculation Tool EVM Simulation Model WEBENCH Design |
| Series | TPS2490 | Features | Latched Fault |
| Software | SLVS503D | Applications | General Purpose |
| Main Purpose | Latched Fault | Manufacturer | Texas Instruments |
| Output Alarm | Active Low | Pattern Number | Y |

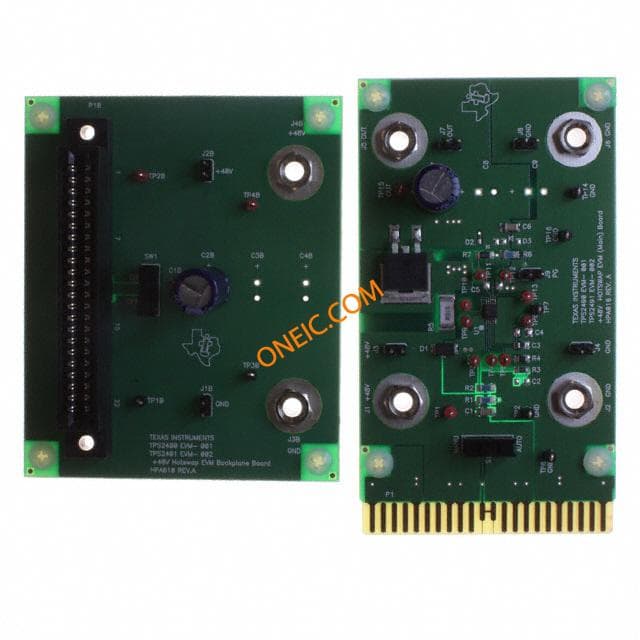

| Development Kit | TPS2490EVM-001 | Functional Diagram | alt_slvs503d.gif |
| Internal Switch(s) | No | Utilized IC / Part | View |
| Internal Connection | No | Channels per Circuit | 1 |
| DigiKey Programmable | Current Limit, Fault Timeout, UVLO | Other Specifications | Always |
| Printed Circuit Board | 10 | Programmable Features | Current Limit, Fault Timeout, UVLO |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 °C |
| Operating Temperature - Junction | 85C | ||
