TPS2375D
| Manufacturer | |
| Description | POWER OVER ETHERNET Power Controller 8-Pin SOIC Tube POE Controller 0V 57V 13W 8-Pin SOIC IC CTRLR POE POWERED IEEE 8-SOIC Hot Swap Voltage Controllers IEEE 802.3af PoE Pwr Device Cntrler IEEE802.3AF POWER CONTROLLER, 2375 IEEE 802.3af PoE Powered Device Controllers 以太网控制器, 8针 SOIC封装 Power Switch ICs - POE / LAN IEEE 802.3af PoE Pwr Device Cntrler |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | PoE / LAN Solutions | Other Names | 296-17061 |
| Product Category | Hot Swap Voltage Controllers | Standard Package | Rail / Tube, Cut Tape |
| Factory Pack Quantity | 75 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | IEEE802.3af |
| Tariff No | 85423190 | Part Status | :2375 |
| Rad Hardened | No | Fault Protection | Latch |
Electrical
| Current | 405 | PoE Ports | Programmable |
| Resistance | 500(Max) | Power - Max | 12.95W |
| Power Level | 13W | Power - Rated | 13 W |
| Voltage Rating | :57V | Current - Output | 240µA |
| Voltage - Supply | 0 V ~ 57 V | Number of Channels | 1 |
| Voltage - Off State | 30.5 | Current Rating (Max) | 461(Typ) |
| Must Release Voltage | :5V | Rds On (Max) @ Id, Vgs | 580 |
| Current - Short Circuit (Isc) | 0.405 A | Voltage - Gate Trigger (Vgt) (Max) | 39.3 |
| Common Mode Transient Immunity (Min) | Industrial | Current - Non Rep. Surge 50, 60Hz (Itsm) | 130 |
Mechanical
| Width | 4(Max) | Weight | 0.002561 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8SOIC | Package Cooled | SOIC |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 5(Max) |
| Package Quantity | SOIC | Number of Positions | 8 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 8-SOIC |
Product Info
| Type | Controller (PD) | Series | TPS2375 |
| Software | SLVS525B | Base Unit | :2375 |
| Pattern Number | Y | Auxiliary Sense | No |
| Internal Switch(s) | Yes | Utilized IC / Part | View |
| DigiKey Programmable | Yes | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

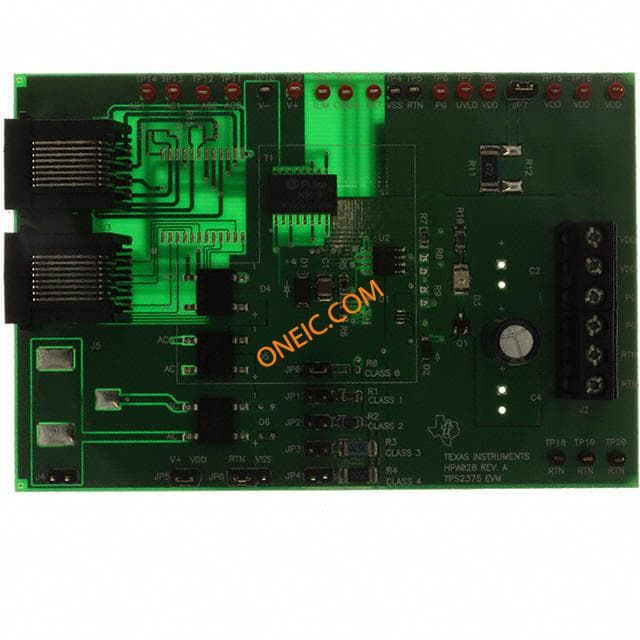

TPS2375EVM
