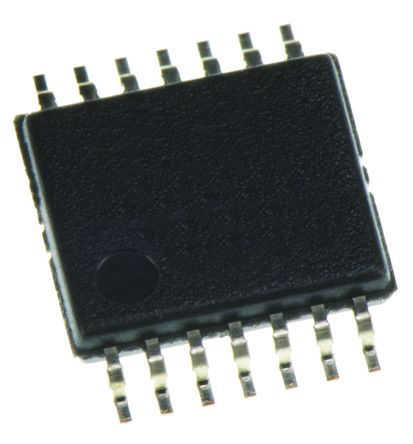

TPL0102-100PWR
| Manufacturer | |
| Description | デジタルポテンショメータ IC 256 Taps Dual Ch Dig Pot Dual Channel Digital Potentiometer 14-Pin TSSOP T/R IC DGTL POT 256POS 100K 14TSSOP Digital Potentiometer ICs 256 Taps Dual Ch Dig Pot 256 Taps Dual Channel Digital Potentiometer with I2C Interface and Non-Volatile Memory 100kΩ 256位置 线性 数字电位计, 串行 - I2C接口, 14针 TSSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-30048-1 | Product Category | Digital Potentiometer ICs |
| Standard Package | 2,000 | Factory Pack Quantity | 2000 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | ||
Electrical
| Interface | I²C (Device Address) | Tolerance | 20 % |
| Resistance | 100 kOhms | Memory Type | Non-Volatile |
| Power - Input | 双，单 | Current - Output | 2 mA |
| Current - Supply | 2 mA | Voltage - Supply | 2.7 V ~ 5.5 V, ±2.25 V ~ 2.75 V |
| Resistance (Ohms) | 100k | Resistance in Ohms @ 25degC | 100k |
| Voltage - Supply, Dual (V+/-) | ±2.25 → ±2.75V | ||
Mechanical
| Width | 4.5mm | Height | 1.05mm |
| Length | 5.1mm | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Contact Type | 线性 |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 14 | Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Connector Usage | I²C (Device Address) | Length - Overall | 5.1(Max) |
| Package Quantity | TSSOP | Size / Dimension | 5.1 x 4.5 x 1.05mm |
| Number of Positions | 14 | Shell Size - Insert | 1.05(Max) |
| Contact Finish - Mating | Buffered | Supplier Device Package | 14-TSSOP |
Product Info
| Series | TPL0102-100 | Function | Y |
| Software | SLIS134B | Manufacturer | Texas Instruments |
| Wiper Memory | Non Volatile | Control Interface | 串行 - I2C |
| Number of Circuits | 2 | Utilized IC / Part | View |
| Number of Taps/Steps | 256 | Printed Circuit Board | 14 |
| Number of A/D Converters | Dual | Number of Positions/Contacts | 1 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
| Temperature Coefficient | 92 ppm/°C Typical | Temperature Coefficient (Typ) | 92 ppm/°C Typical |
