TPA6120A2DWP
| Manufacturer | |
| Description | Audio Amp Headphone 2-CH Stereo Class-AB 20-Pin HSOP EP Tube IC AMP AUDIO .08W HIFI 20SOPWR Audio Amplifiers High Fidelity Stereo Headphone Drv Integrated circuit: audio amplifier; SO20 High Fidelity Stereo Headphone Amplifier Texas Instruments AB 类 立体声 耳机放大器 100dB, +85 °C, 20引脚 SOIC封装 |
| Category |
Business
| Product | Class-AB | Other Names | 296-16920-5 |
| Product Category | Audio Amplifiers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| PSRR | 75 dB | Noise | 0.00012@600Ohm@125mW|0.000021@10000Ohm % |
| Output | Single | Frequency | 0.00012%@600Ohm@125mW|0.000021%@1... |
| Impedance | 32 Ohms | Vgs (Max) | 1400(Typ) |
| Output Type | 2-Channel Stereo | Power - Max | 2800 |
| Input Signal | Differential | Output Power | 1500 mW |
| Output Signal | Single | Power - Input | Single/Dual |
| Power - Rated | 2.8 W | Supply Voltage | Single|Dual |
| CMRR, PSRR (Typ) | 100 dB | Current - Output | 11.5 mA |
| Current - Supply | 26 mA | Voltage - Supply | 10 V |
| Distortion Rating | 0.00012 | Signal Conditioning | Differential |
| Current Rating (Max) | Catalog | Voltage - Input (Min) | 5 mV |
| Voltage - Supply (Max) | 30 | Voltage - Supply (Min) | 10 |
| Power Dissipation (Max) | 2800 mW | Voltage - Supply (Vcc/Vdd) | 12|15|18|24|28 |
| Voltage - Supply Span (Max) | ±15 | Voltage - Supply Span (Typ) | �9/�12 V |
| Voltage - Input Offset (Max) | 5@±5V mV | Voltage - Supply, Dual (V+/-) | No |
| Max Output Power x Channels @ Load | 1.5x2 W | Common Mode Transient Immunity (Min) | 75 |
Mechanical
| Width | 7.52 | Weight | 0.017870 oz |
| Packaging | Tube | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 20HSOP EP |
| Package Cooled | HSOP EP | Length - Overall | 12.82 |
| Package Quantity | 50 | Number of Positions | 20 |
| Shell Size - Insert | 2.55 | Supplier Device Package | 20-SO PowerPad |
Product Info
| Spg | 50 | Type | Class AB |
| Series | TPA6120A2 | Features | Differential Inputs, Short-Circuit and Thermal Protection |
| Function | Headphone | Software | SLOS431B |
| Amplifier Type | Class-AB | Pattern Number | Y |
| Number of Units | 1 | Functional Diagram | fbd_slos431b.gif |
| Utilized IC / Part | View | Other Specifications | 20 |
| Output Configuration | 2-Channel Stereo | Printed Circuit Board | 20 |
| Equipment Part Numbers | HSOP EP | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
Documents & Media
Similar Parts
_4040208%5EC.jpg&w=3840&q=75)
BUF634T
texas instruments
OP Amp Single GP ±18V 5-Pin(5+Tab) TO-220 Tube IC OPAMP BUFFER 180MHZ TO220-5 BUF634T, Video Buffer 5-Pin TO-220 High Speed Operational Amplifiers 250mA High-Speed Buffer OP Amp Single GP �18V 5-Pin(5+Tab) TO-220 Tube 250mA High-Speed Buffer Buffer IC TO-220-5, BUF634, BUF634T, Texas Instruments Texas Instruments 视频缓冲器放大器, 5针 TO-220封装
UC3611N
texas instruments
Diode Schottky 50V 3A 8-Pin PDIP Tube DIODE SCHOTTKY 50V 3A 8DIP Schottky Diodes & Rectifiers Quad Schottky Diode Array SCHOTTKY RECTIFER ARRAY, QUAD, 3A, DIP Quad Schottky Diode Array
OPA1632D
texas instruments
OP Amp Single GP ±16V 8-Pin SOIC Rail IC OPAMP AUDIO 180MHZ 8SOIC 3.91mm OPA1632D, Audio Amplifier 74dB +85°C 8-Pin SOIC Audio Amplifiers Fully DiffI/O Audio Amp OP Amp Single GP �16V 8-Pin SOIC Rail OP AMP, DIFFERENTIAL, 1632, SOIC8 Operational amplifier; 180MHz; 2.5÷16VDC; Channels:1; SO8 Fully Differential I/O Audio Amplifier Texas Instruments 音频 单声道 音频放大器, 180 74dB, +85 °C, 8引脚 SOIC封装

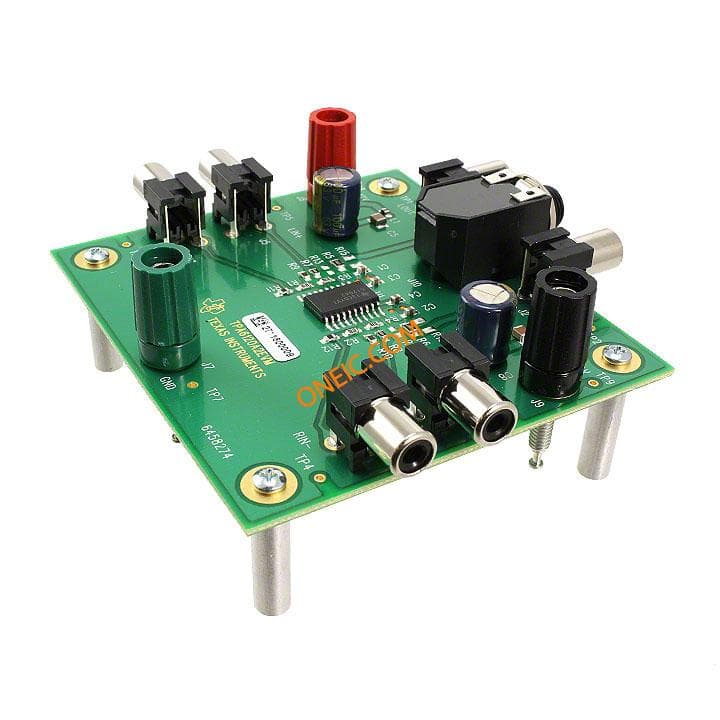

TPA6120A2EVM
